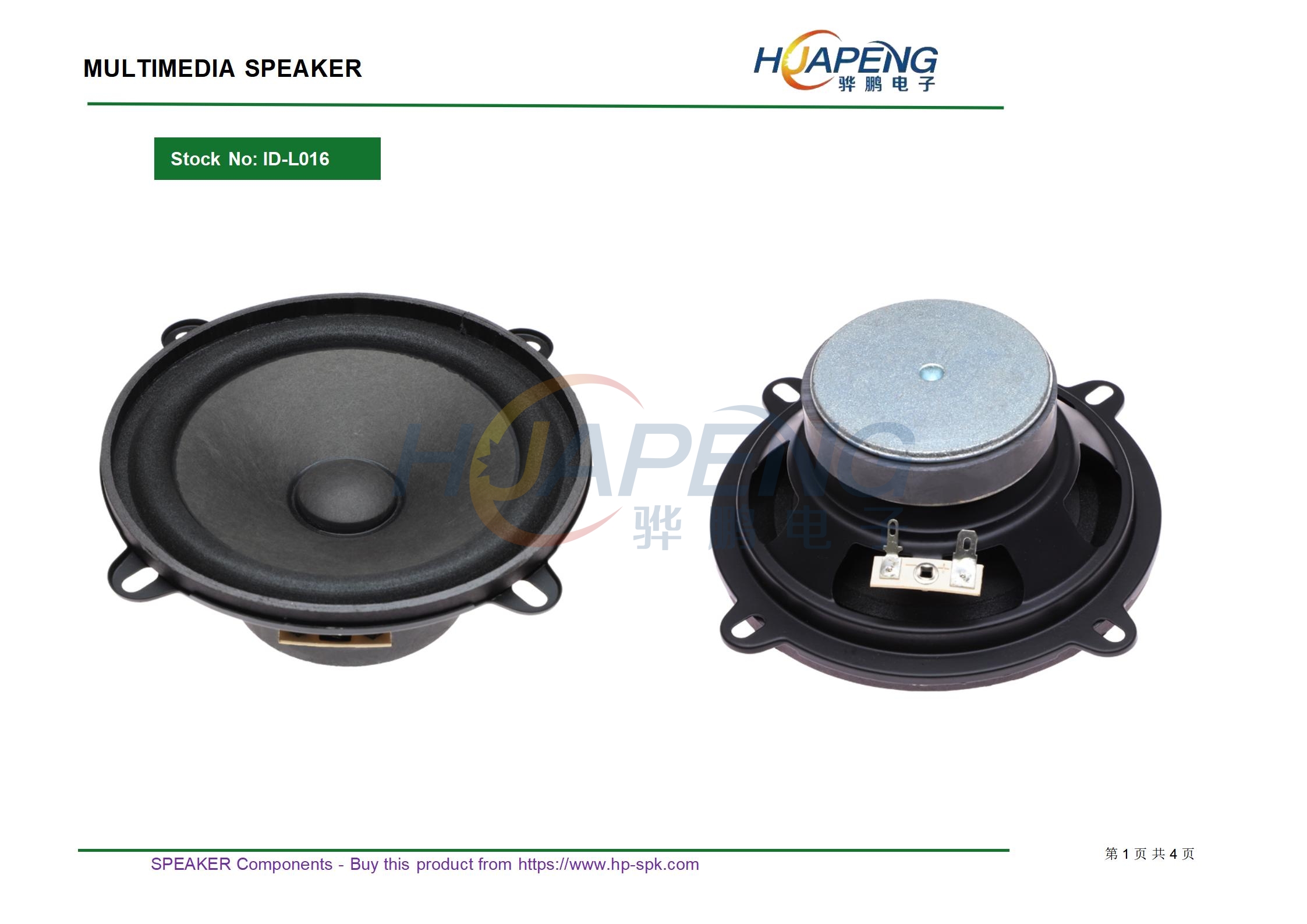

全频扬声器型号：HP130-4F-231227D-E规格：5.25” 4Ω 15W泡盆喇叭

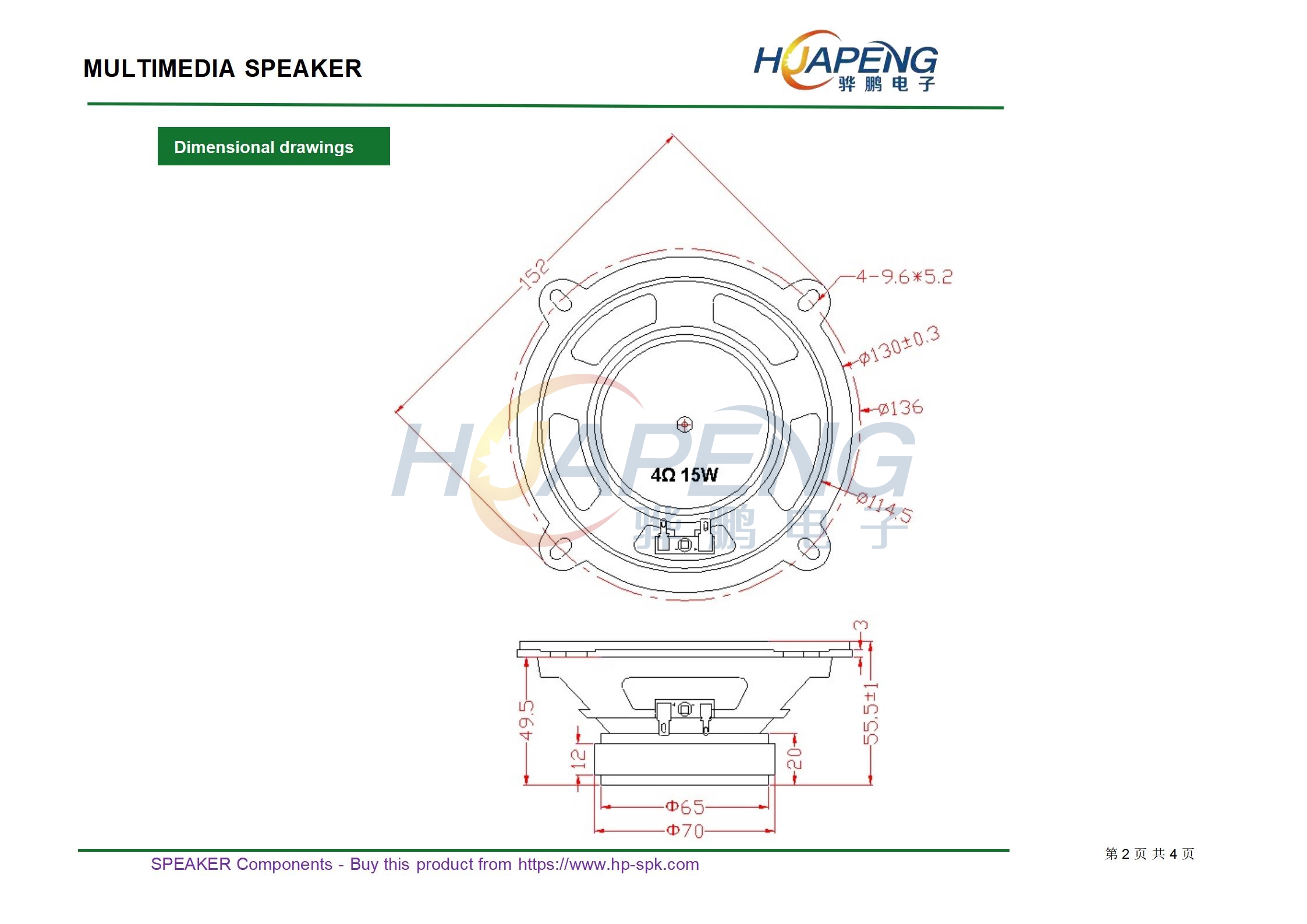

• Size： 130 H 37.5 mm
• Impedance： 4 ±20% Ω
• SPL(1W 1m sine wave) 86 ±3dB(at 1.0KHz )

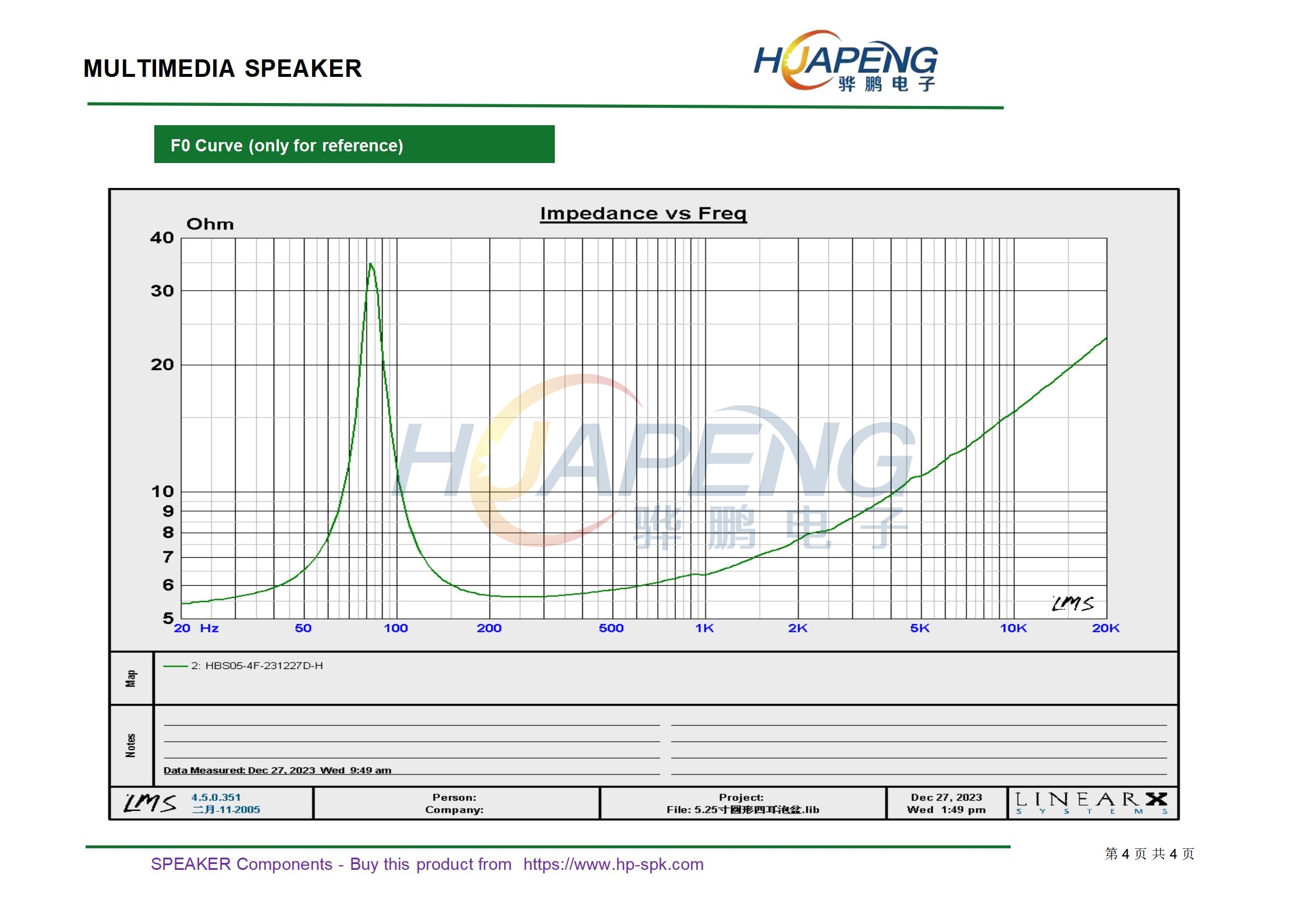

• Resonance frequency 80 ±20% Hz

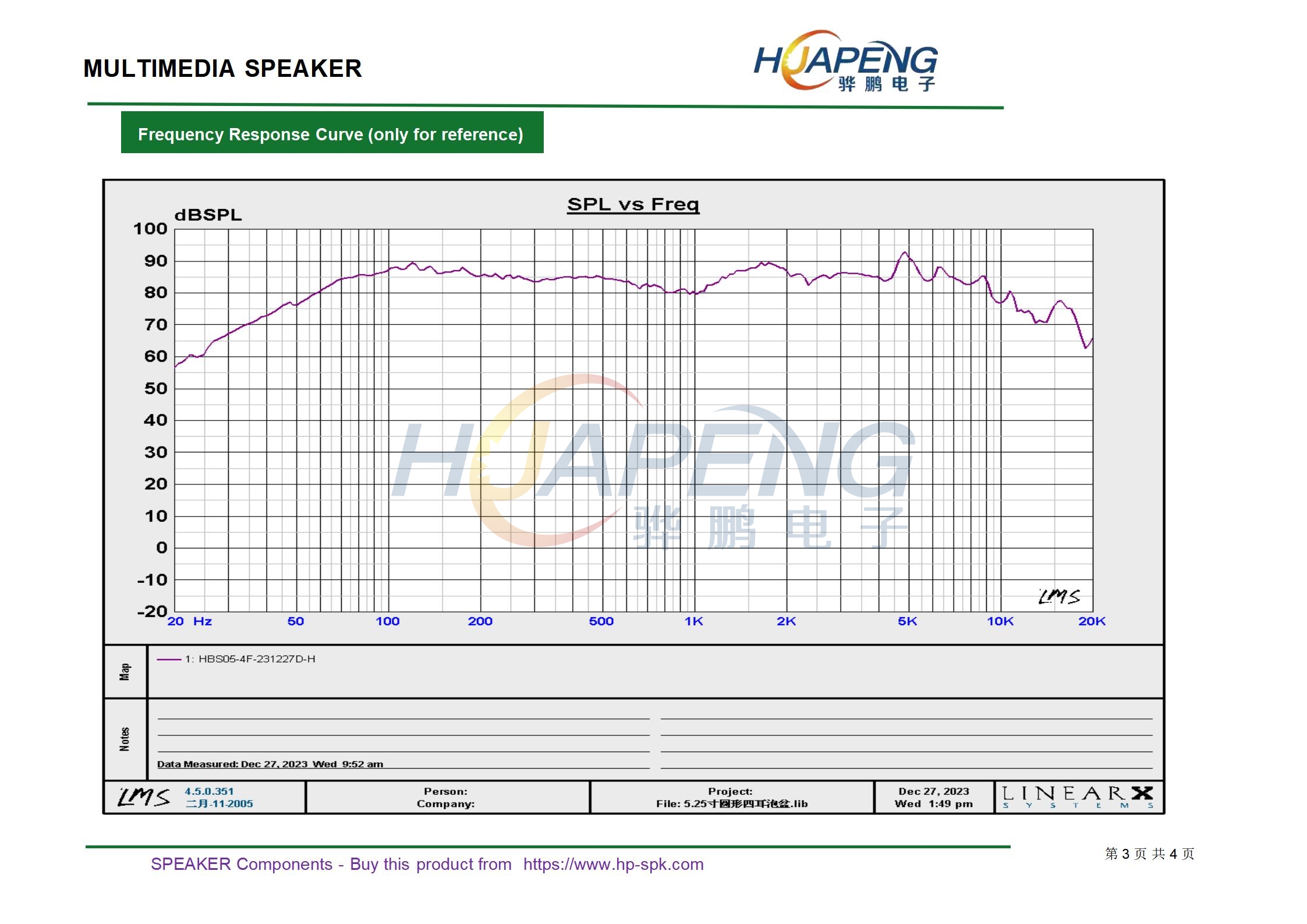

• Frequency Range Fo~10KHz
• Rated input power 15 W
• Maximum input power 25 W
• Buzz & Rattle must be normal (at sine wave 7.7 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
