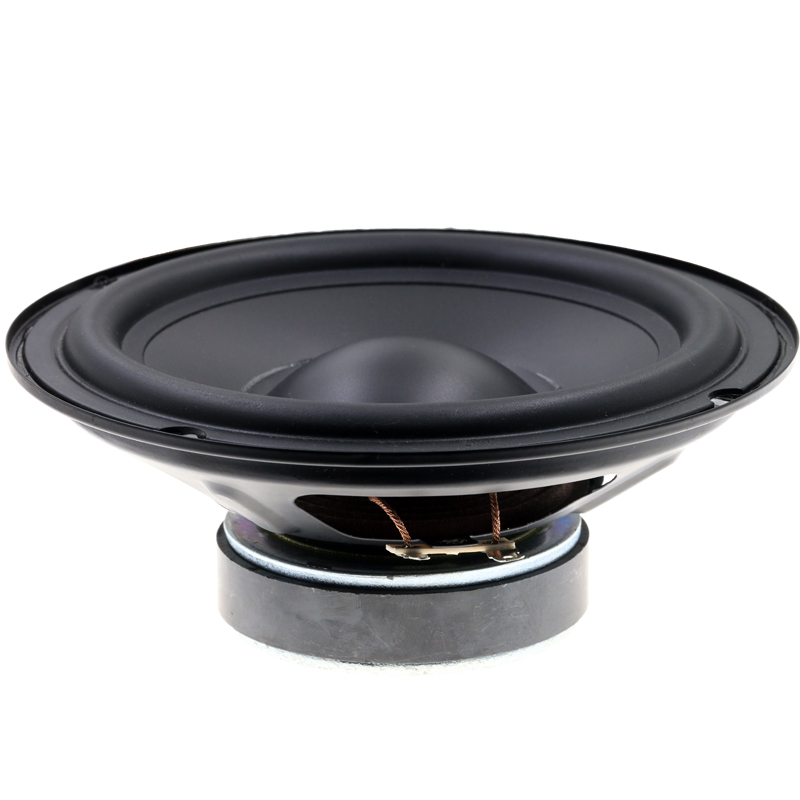

低音喇叭型号：HP165-6E-0224D-E规格：6.5寸圆形6Ω30W外磁PP盆

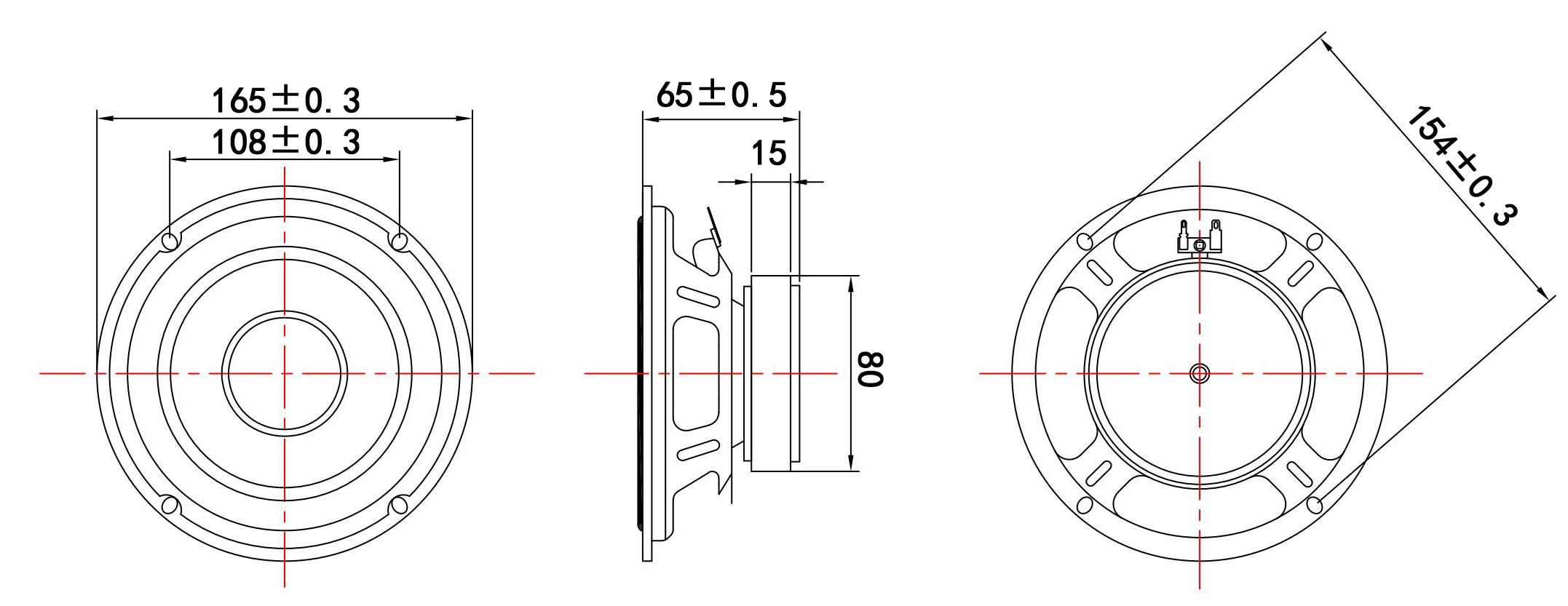

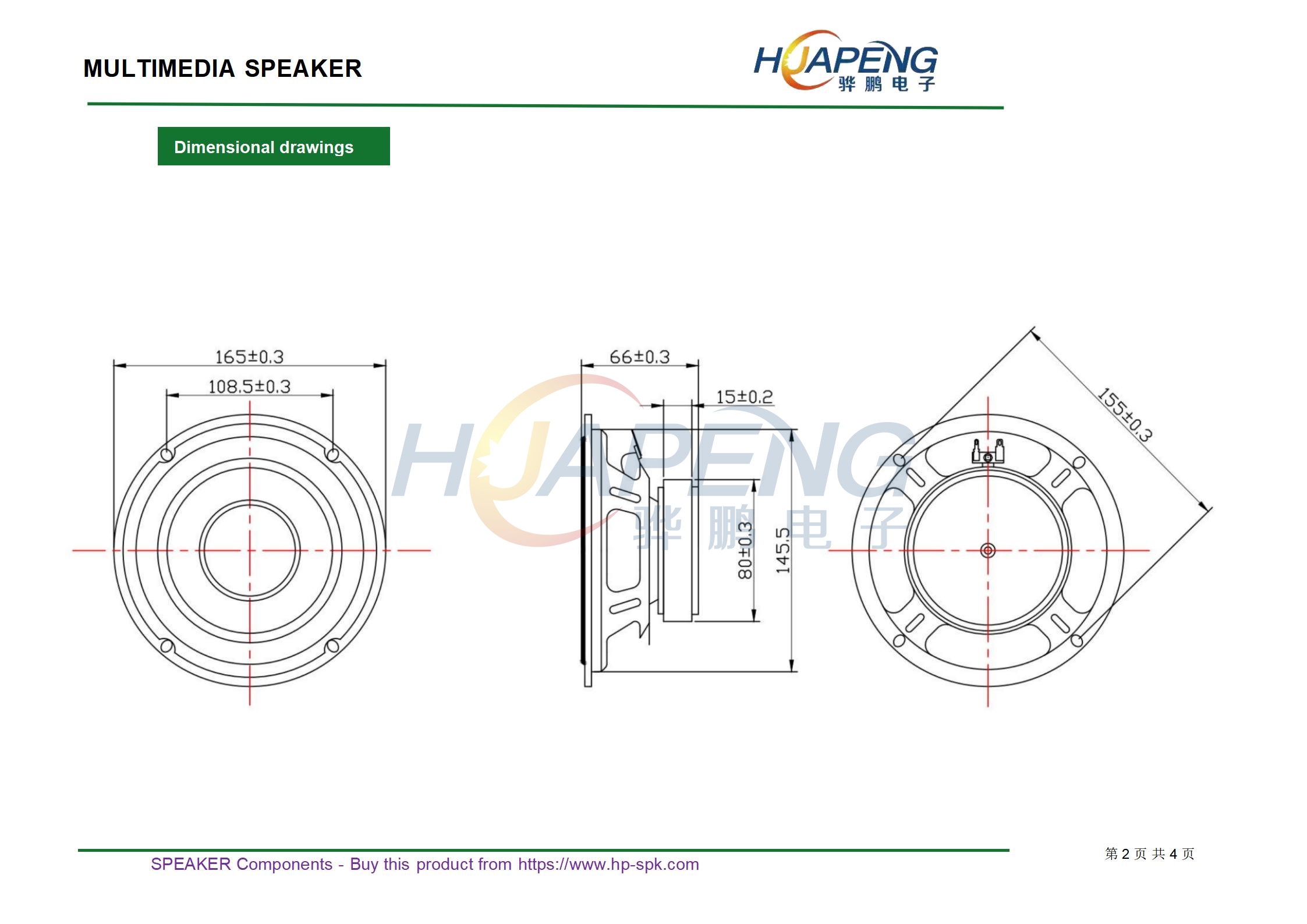

• Size： D 165*165 mm H 64 mm
• Impedance： 6 ±20% Ω
• SPL(1W 1m sine wave) 99 ±3dB(at 800,1000.,1200,1500Hz )

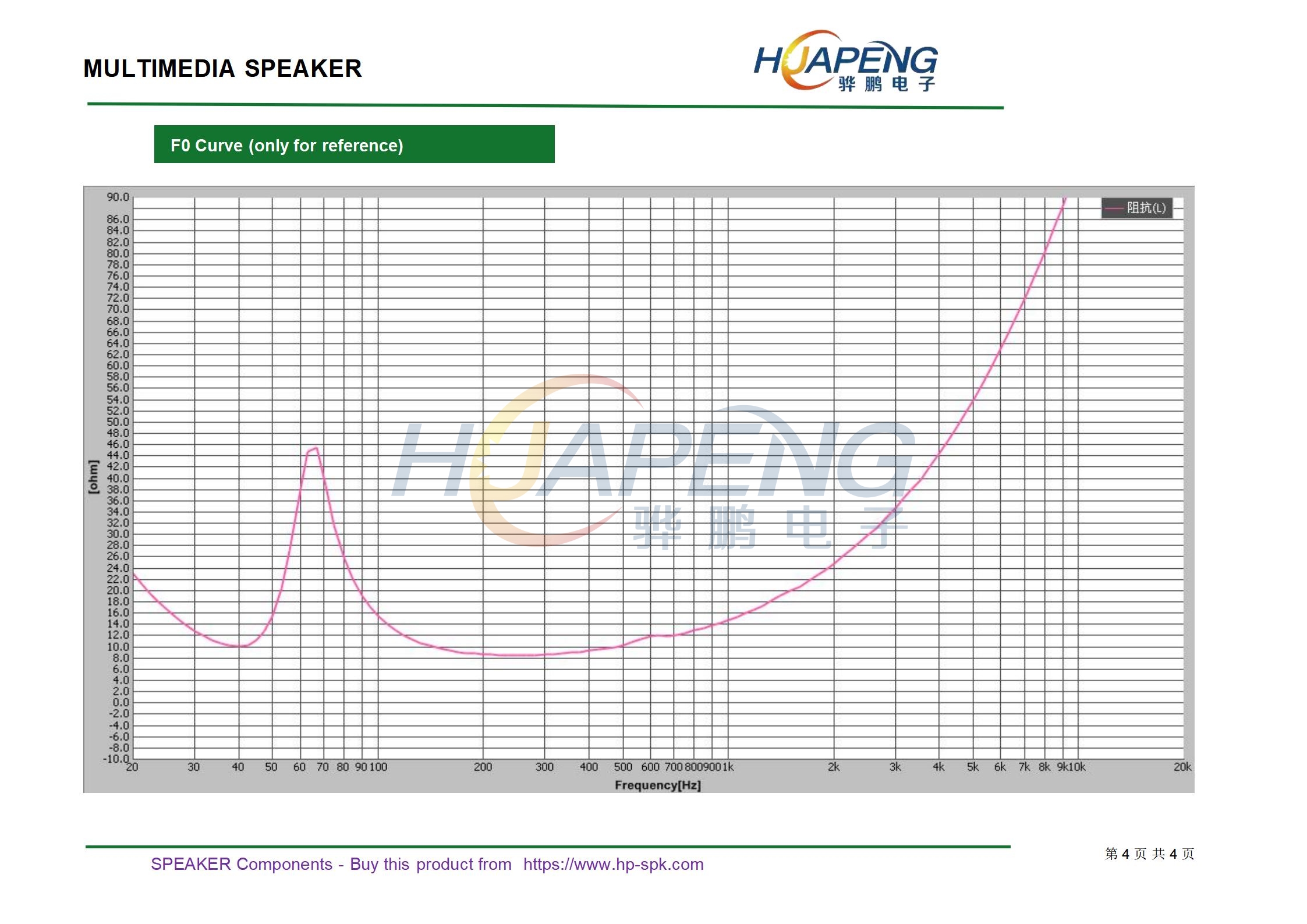

• Resonance frequency 100 ±20% Hz

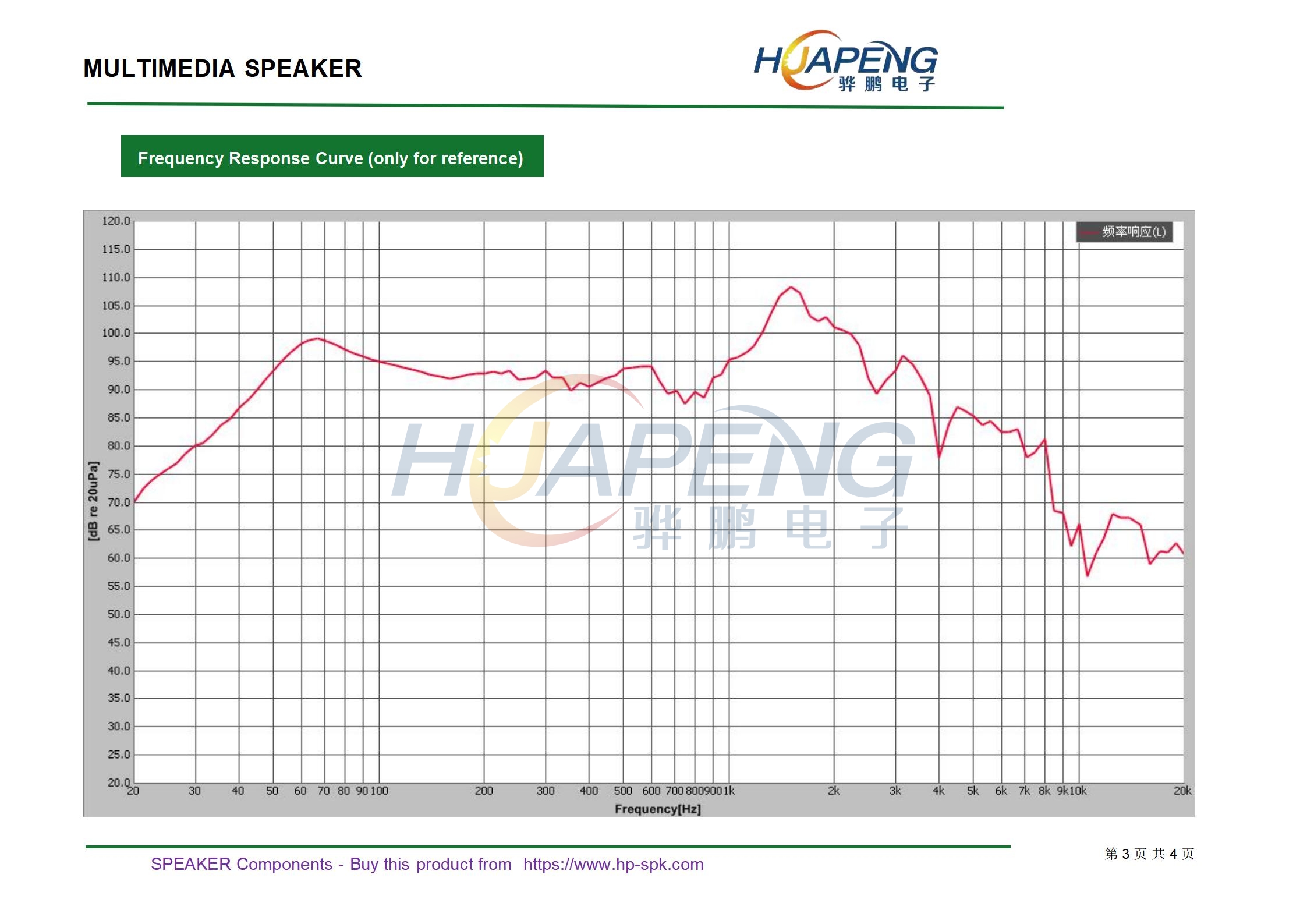

• Frequency Range Fo~10KHz
• Rated input power 25 W
• Maximum input power 30 W
• Buzz & Rattle must be normal (at sine wave 12.24 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
