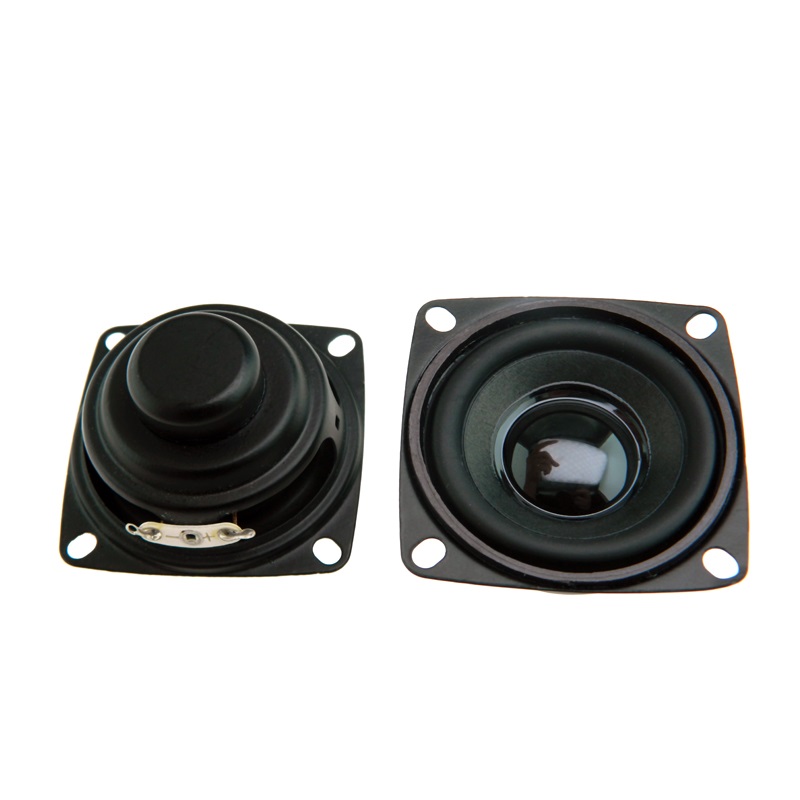

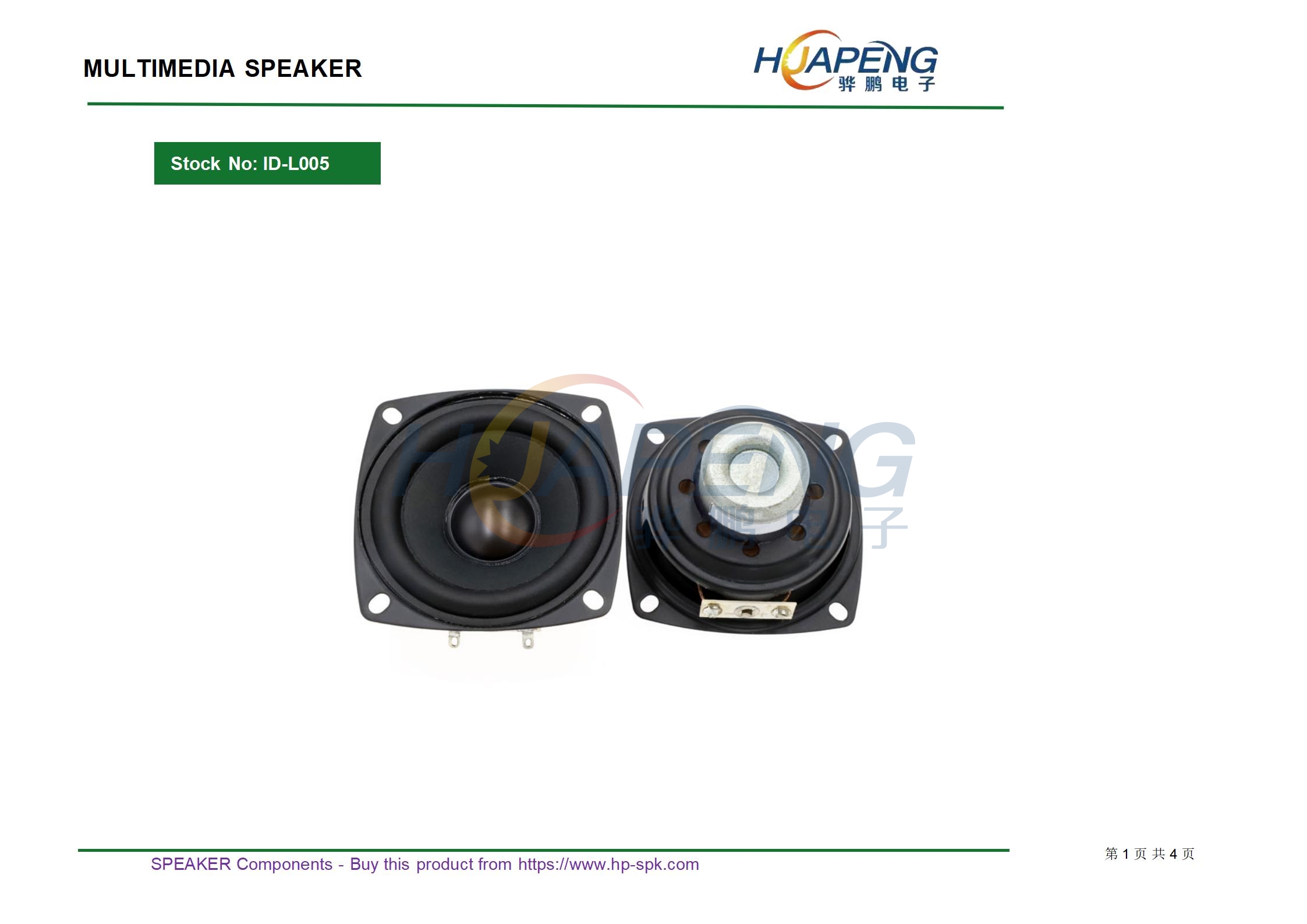

全频喇叭型号：HP067-4-3R-240910C-D规格：3寸4Ω10W内磁喇叭

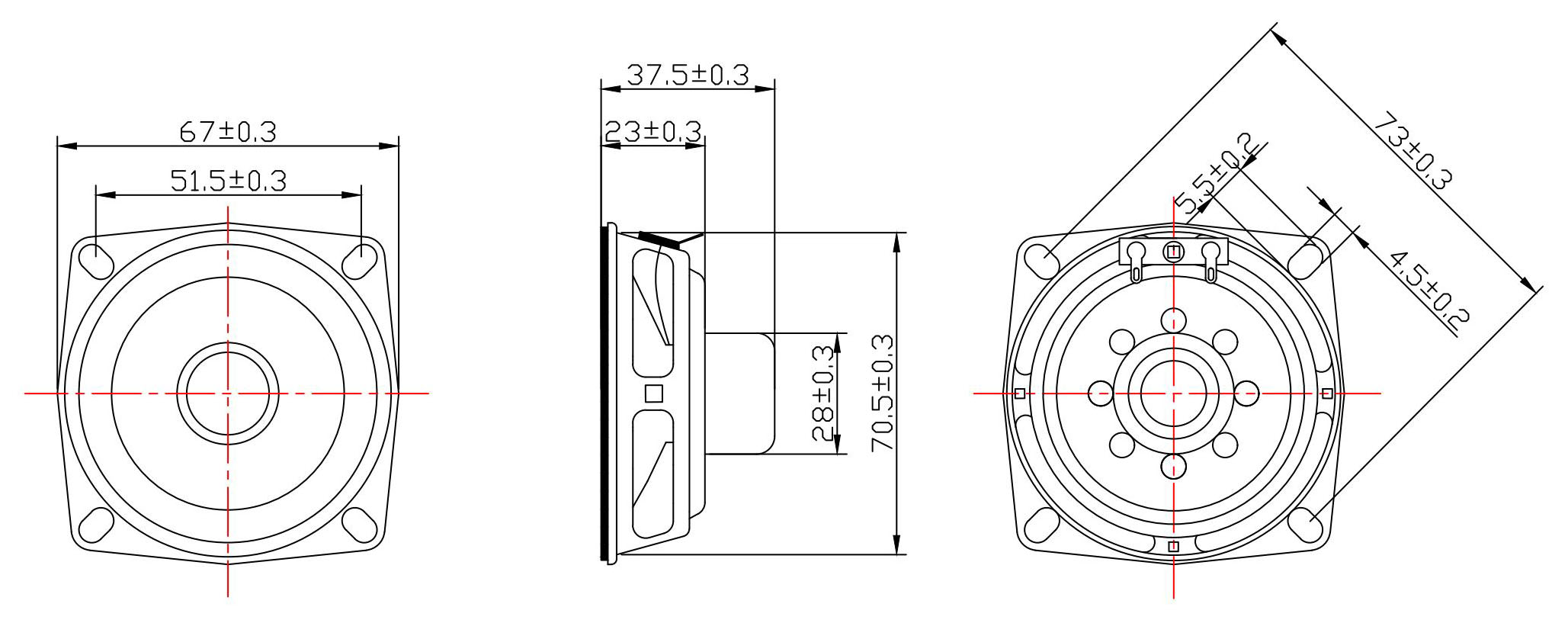

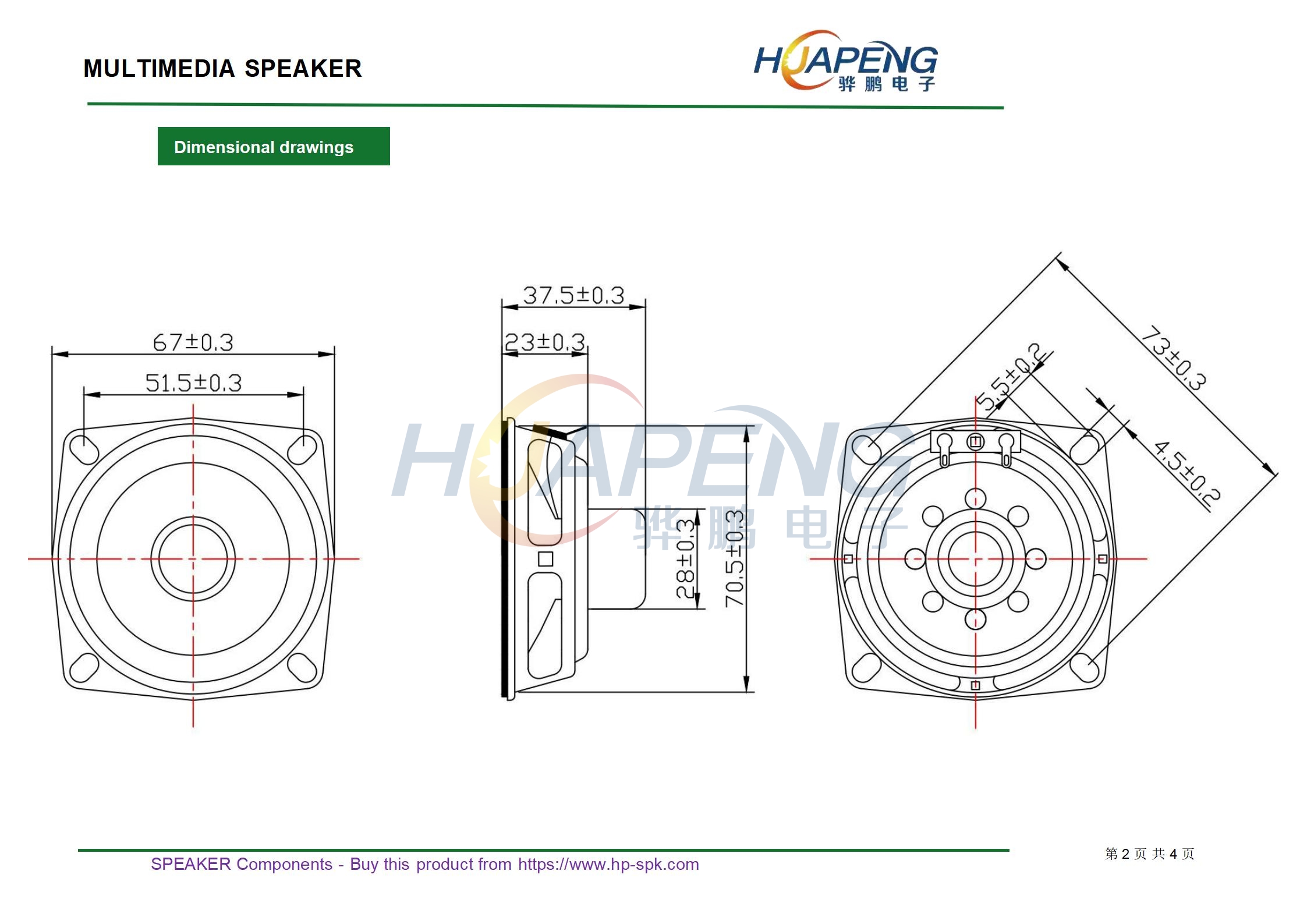

• Size： F67* 67mmH 37.5 mm
• Impedance： 4 ±20% Ω
• SPL(1W 1m sine wave) 90 ±3dB(at 800,1000.,1200,1500Hz )

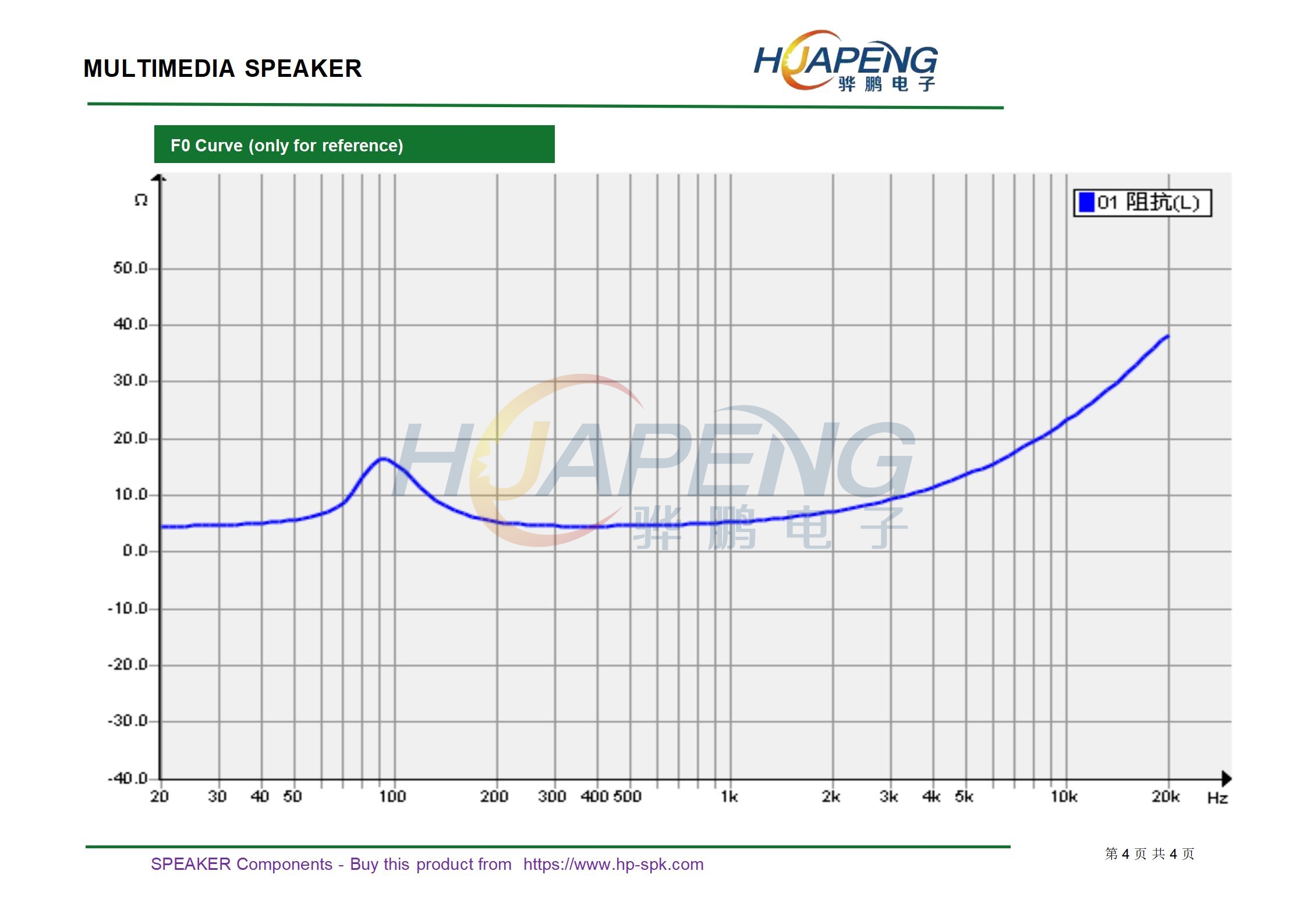

• Resonance frequency 120 ±20% Hz

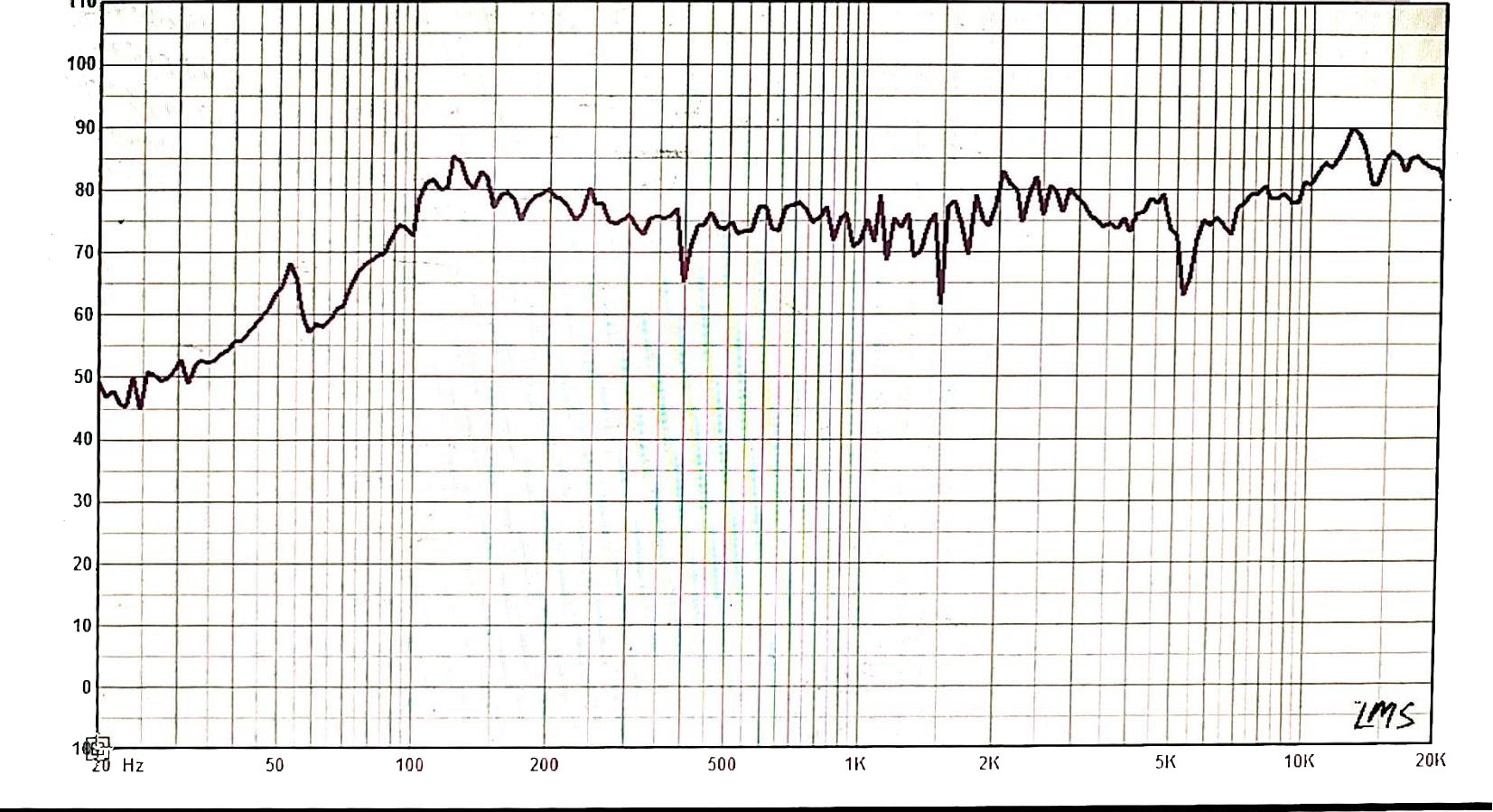

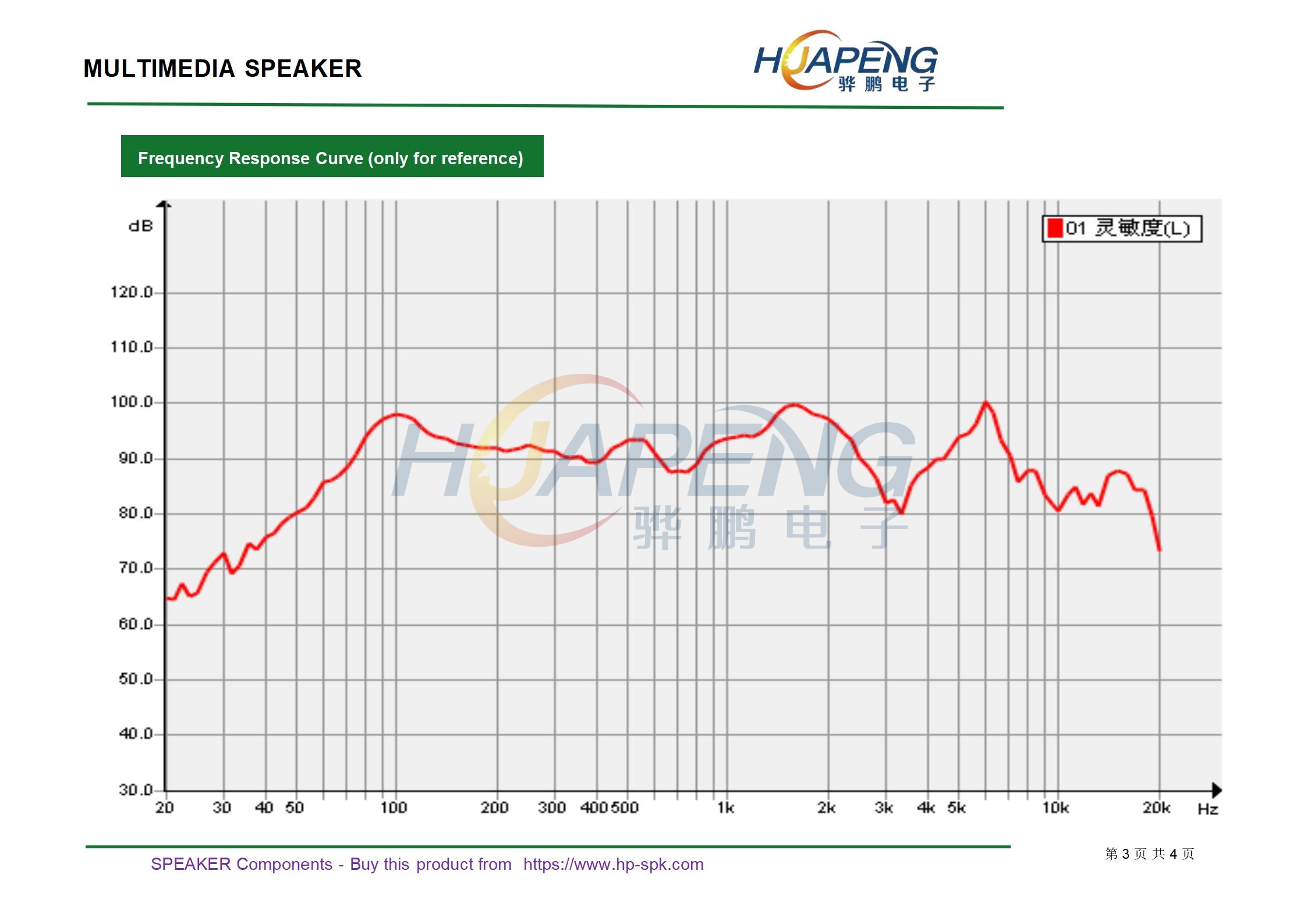

• Frequency Range Fo~10KHz
• Rated input power 8 W
• Maximum input power 12 W
• Buzz & Rattle must be normal (at sine wave 5.6 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
