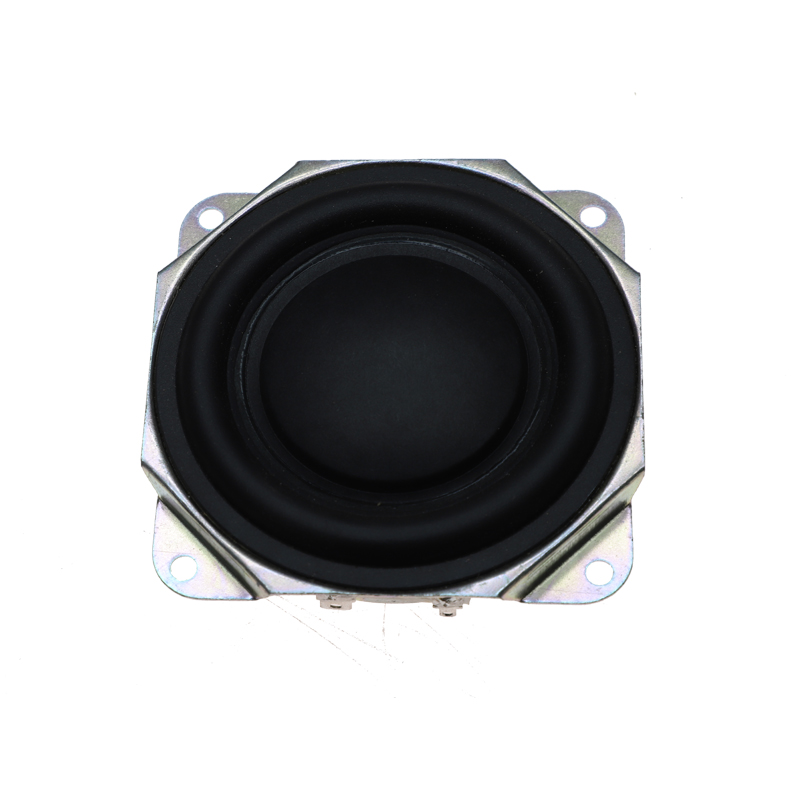

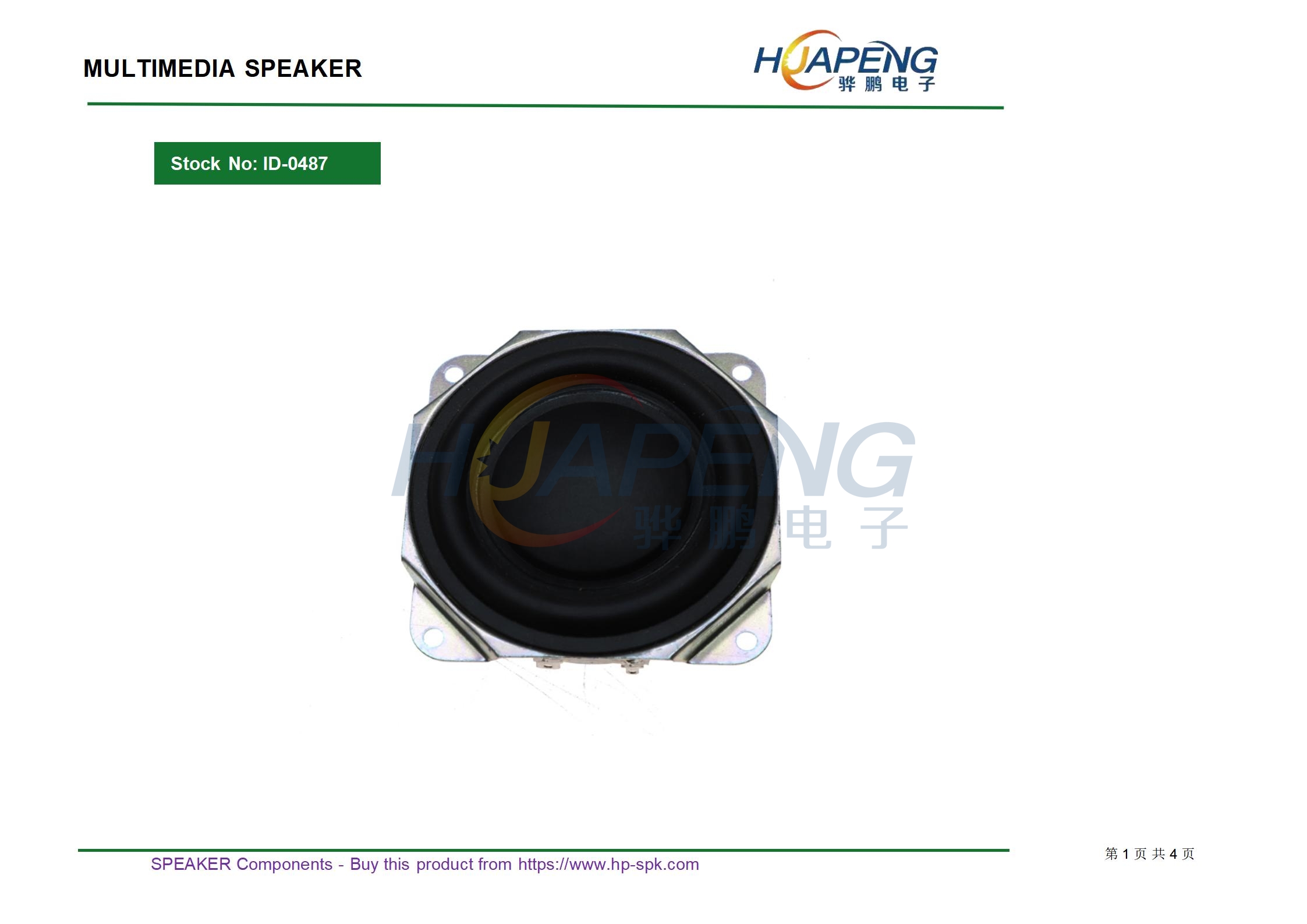

多媒体喇叭型号：HP080-4R-0487C-F规格：方形80*80mm4Ω10W折角内磁喇叭

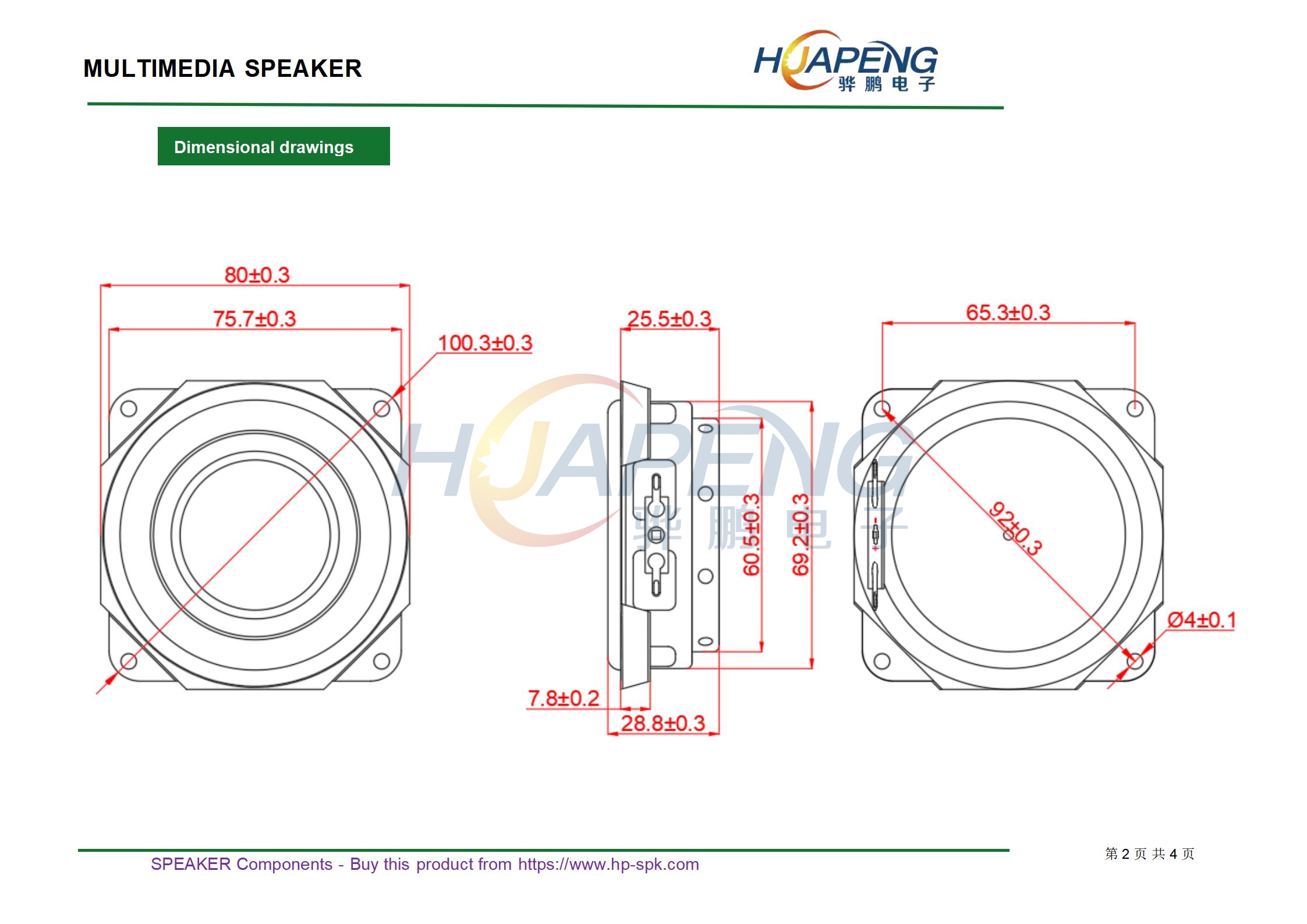

• Size： D 80*80 mm H 28 mm
• Impedance： 4 ±20% Ω
• SPL(1W 1m sine wave) 90 ±3dB(at 800,1000.,1200,1500Hz )

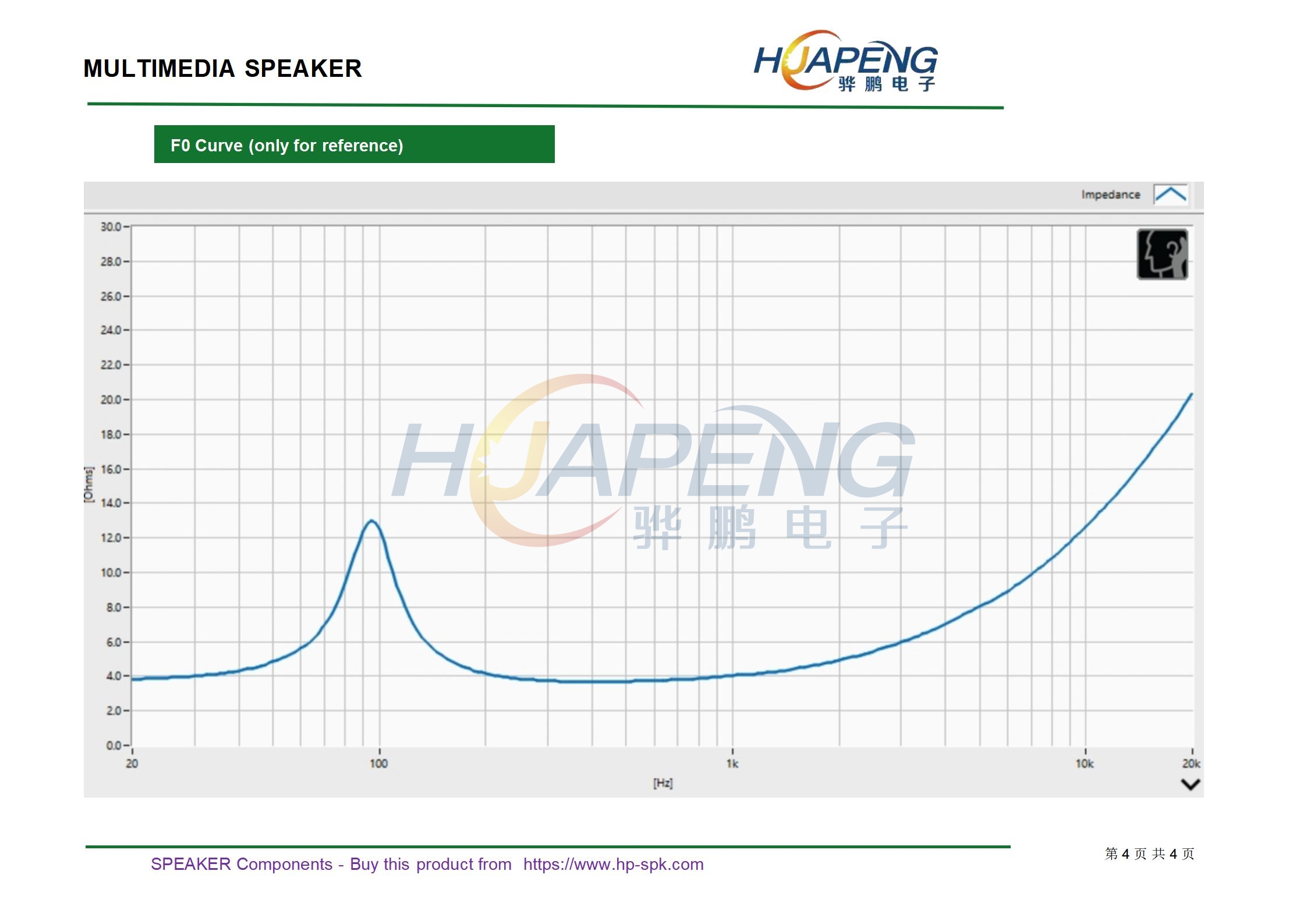

• Resonance frequency 95 ±20% Hz

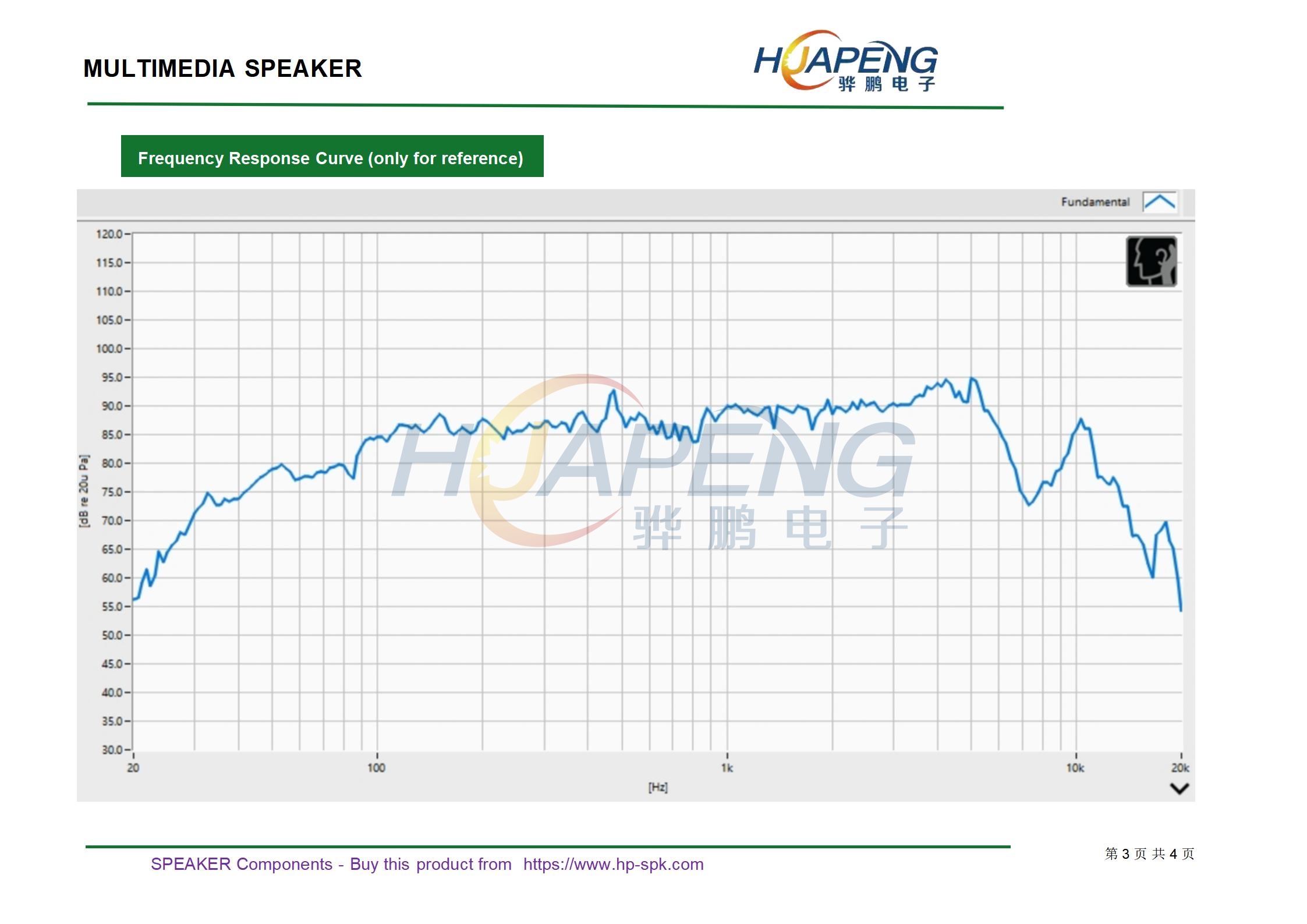

• Frequency Range Fo~10KHz
• Rated input power 10 W
• Maximum input power 15 W
• Buzz & Rattle must be normal (at sine wave 6.32 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
• Stock No: 0487
