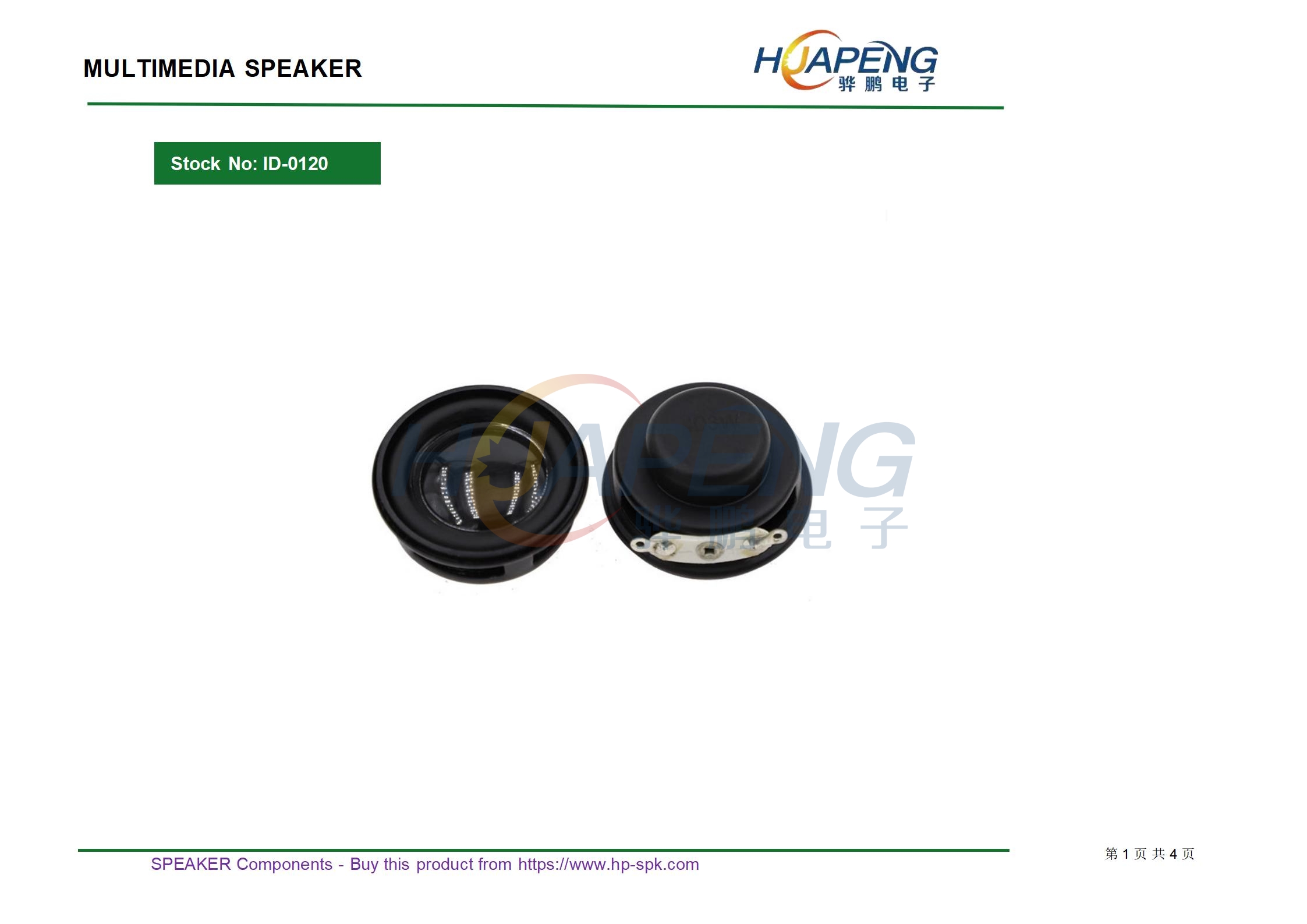

锅底喇叭型号：HP031-4U-0120C-A规格：φ31mmH17.8mm4Ω3WPU边锅底帽双磁喇叭

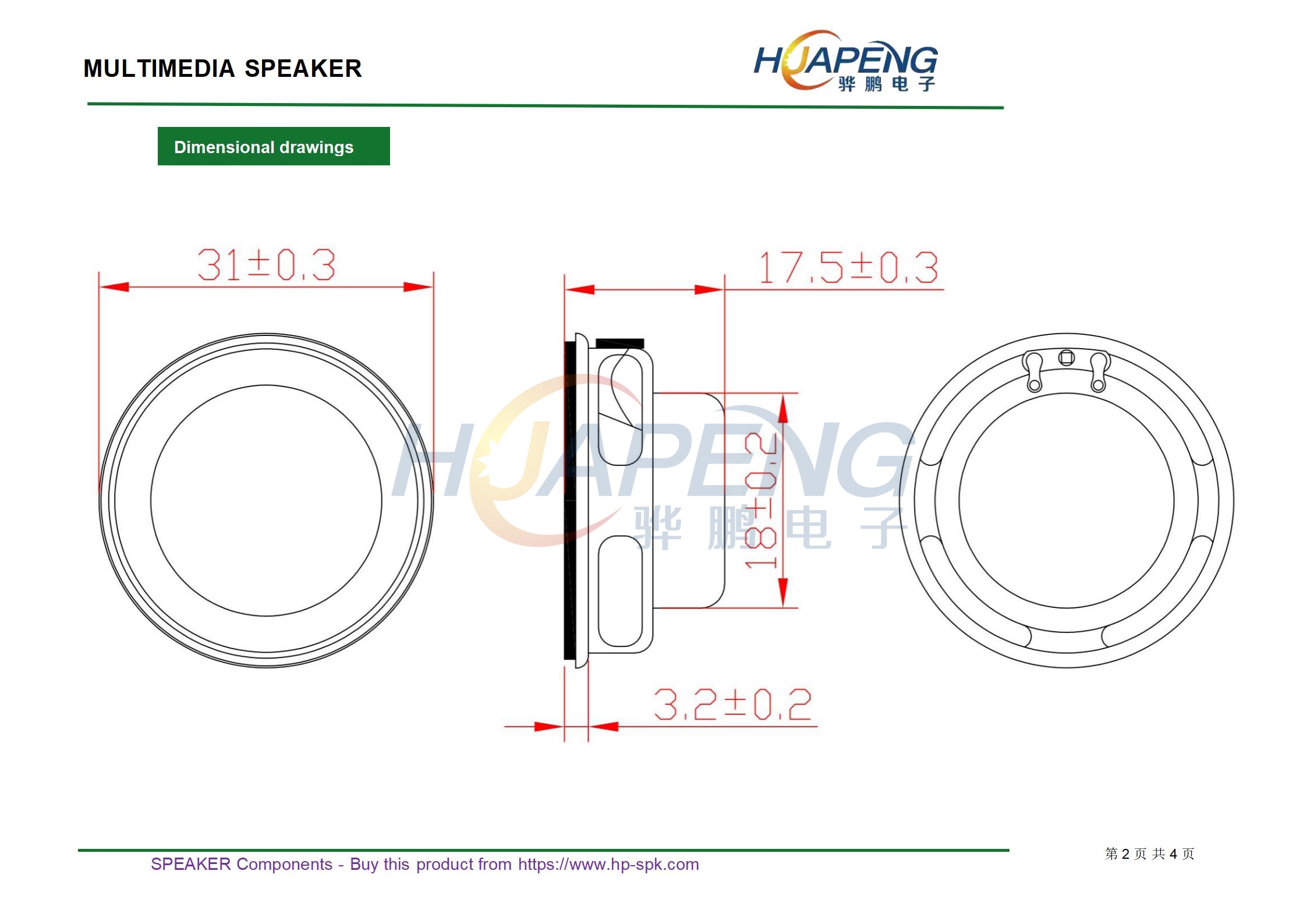

• Size： D 31 mm H 17.8 mm
• Impedance： 4 ±20% Ω

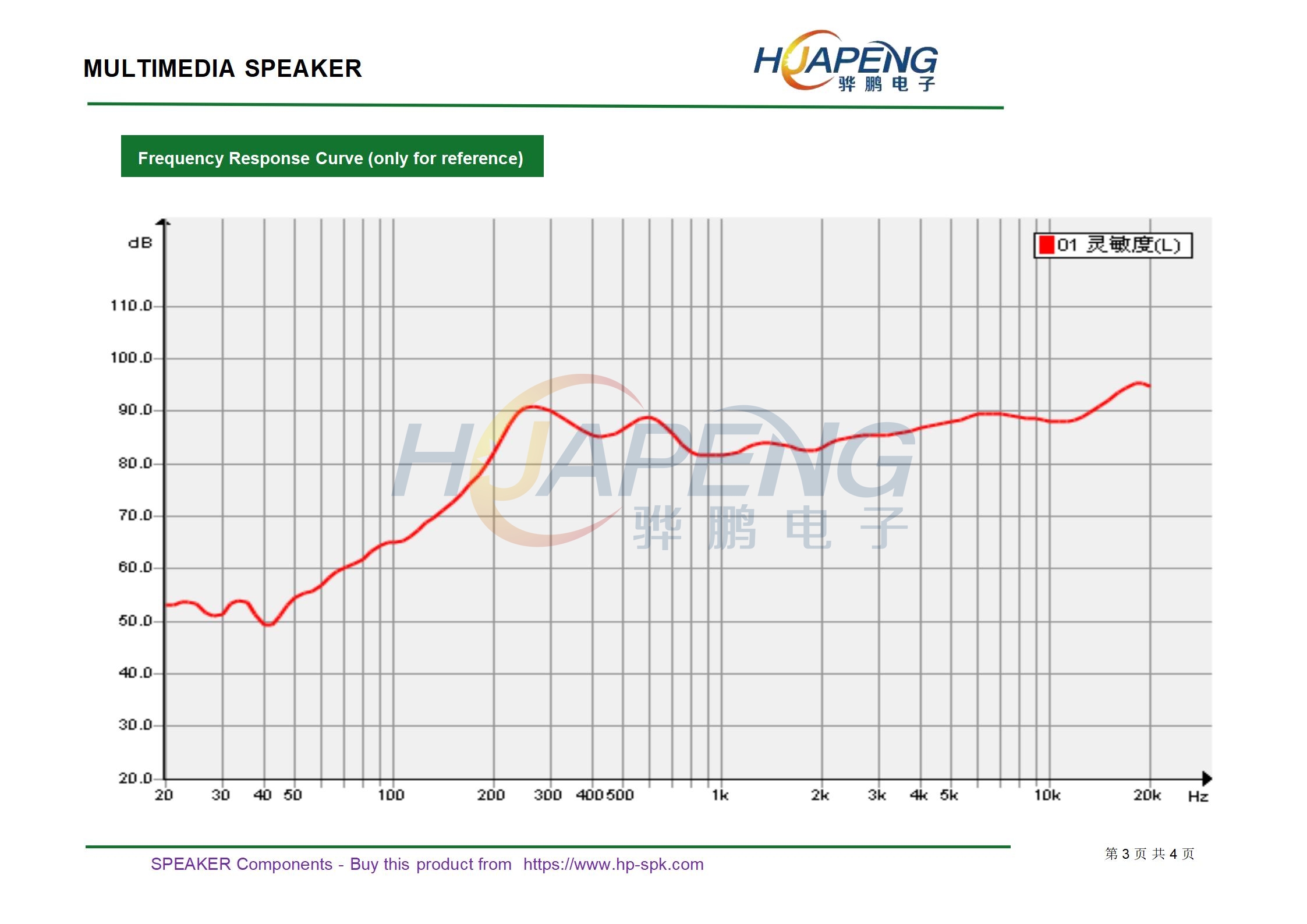

• SPL(1W 1m sine wave) 81 ±3dB(at 800,1000.,1200,1500Hz )

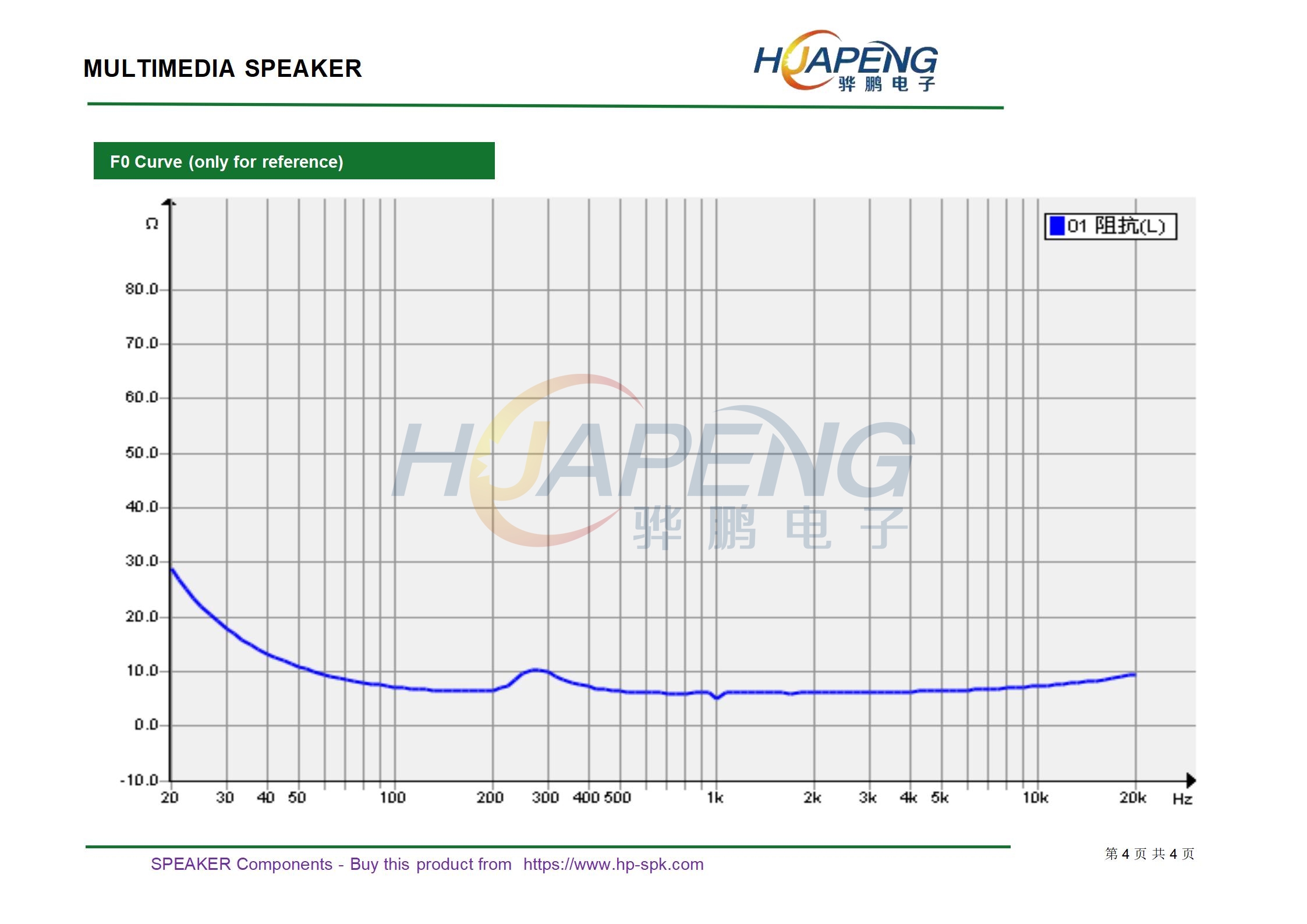

• Resonance frequency 265 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 2 W
• Maximum input power 3 W
• Buzz & Rattle must be normal (at sine wave 2.8 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
