外磁喇叭型号：HP036-8U-24002D-A规格：φ36mm8Ω3W PU盆喇叭

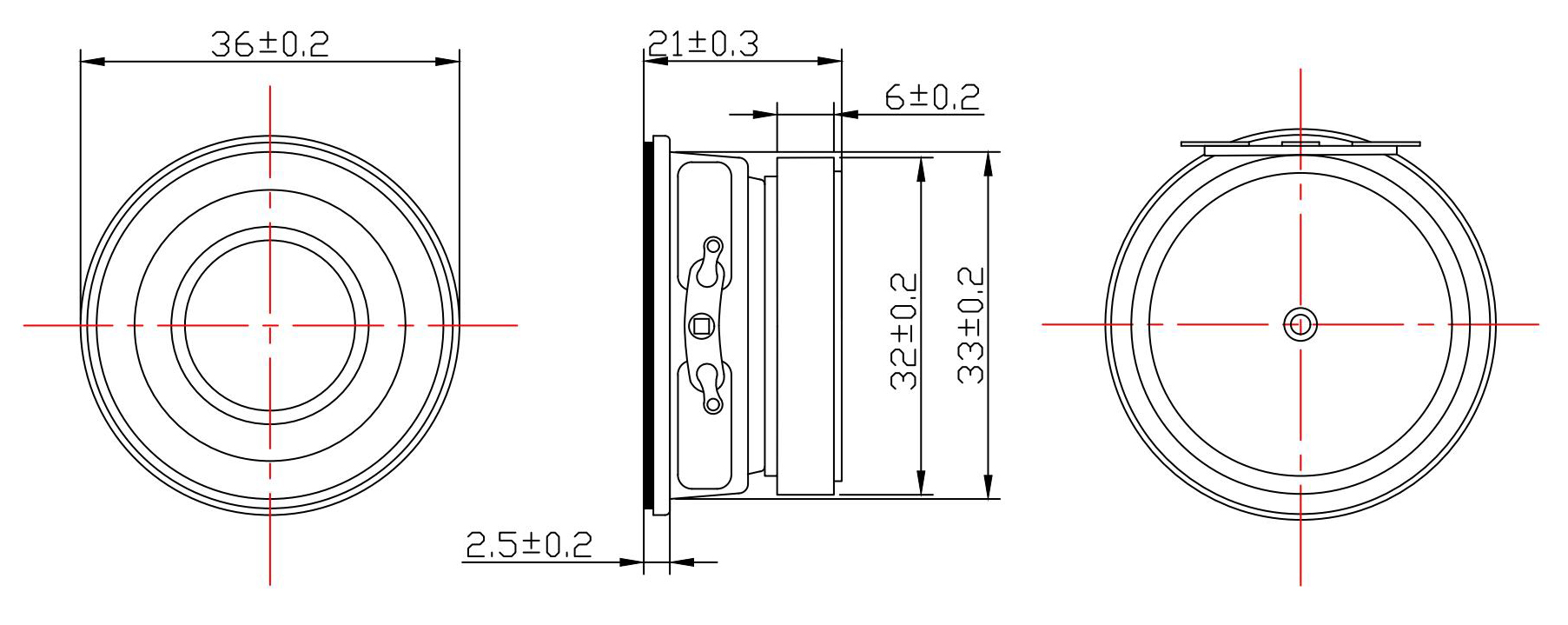

• Size： D 36 mm H 21 mm
• Impedance： 8 ±20% Ω

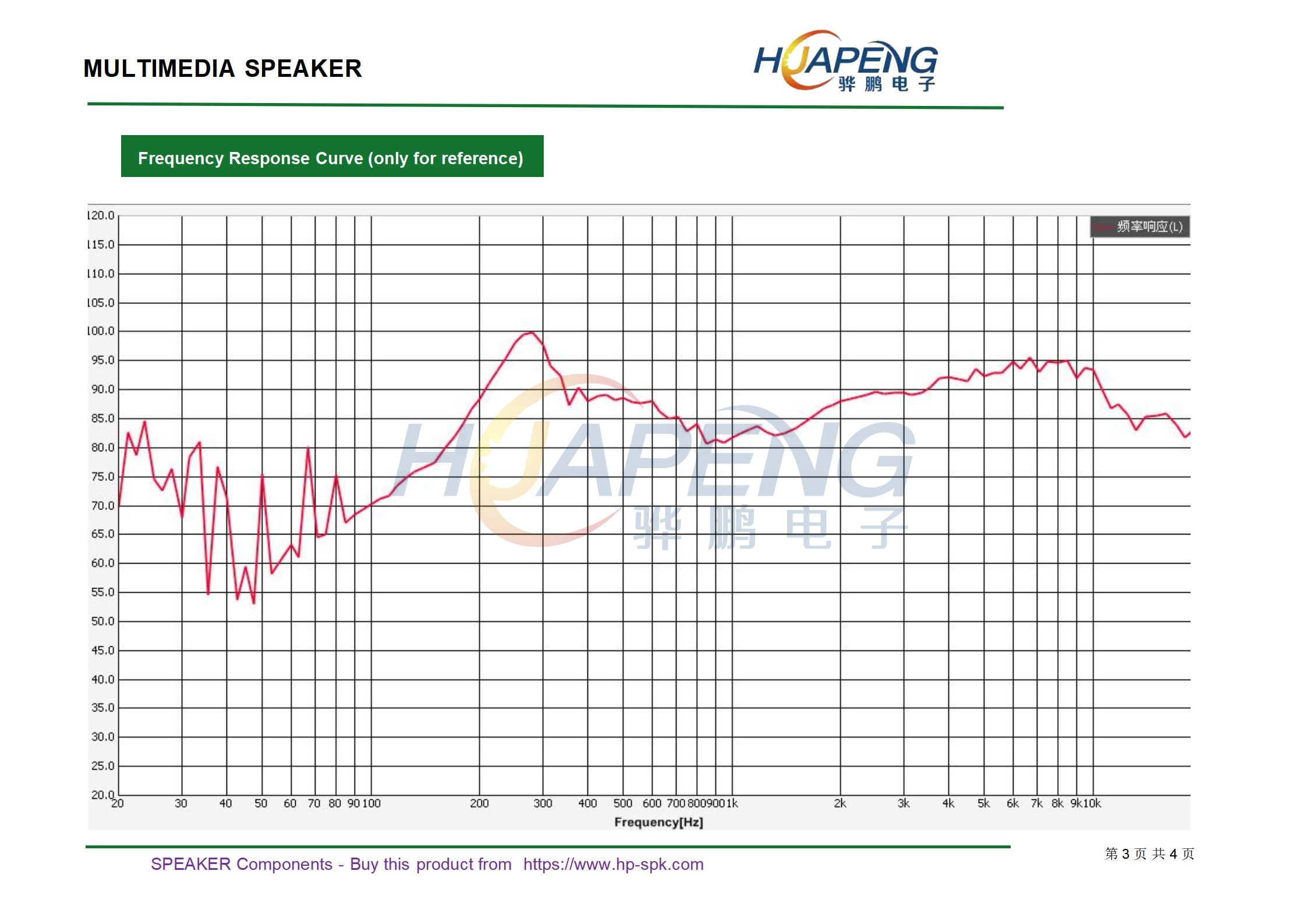

• SPL(1W 1m sine wave) 92 ±3dB(at 800,1000.,1200,1500Hz )

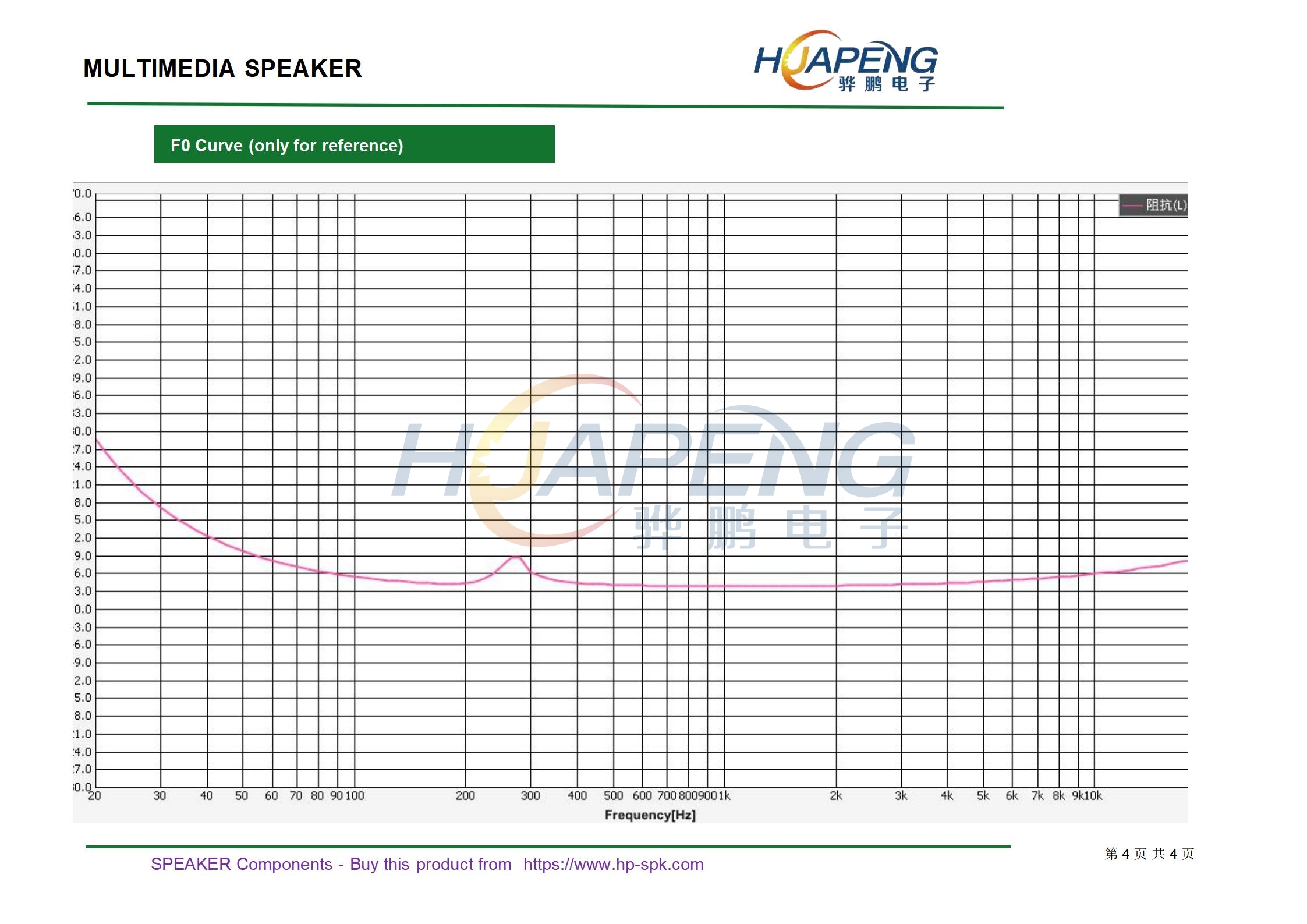

• Resonance frequency 210 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 2 W
• Maximum input power 3 W
• Buzz & Rattle must be normal (at sine wave 4.0 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
