微型喇叭 型号：HP230508100-03A规格：φ23mmH5.0mm8Ω1W贴布内磁弧形膜

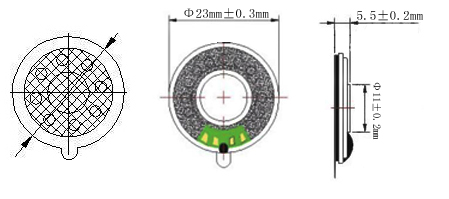

• Size： D 23 mm H 5.5 mm
• Impedance： 8 ±20% Ω
• SPL(1W 1m sine wave) 98 ±3dB(at 800,1000.,1200,1500Hz )
• Resonance frequency 850 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 0.8 W
• Maximum input power 1.0 W
• Buzz & Rattle must be normal (at sine wave 2.8 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
