微型喇叭 型号：HP13S035G8-01规格：13MM

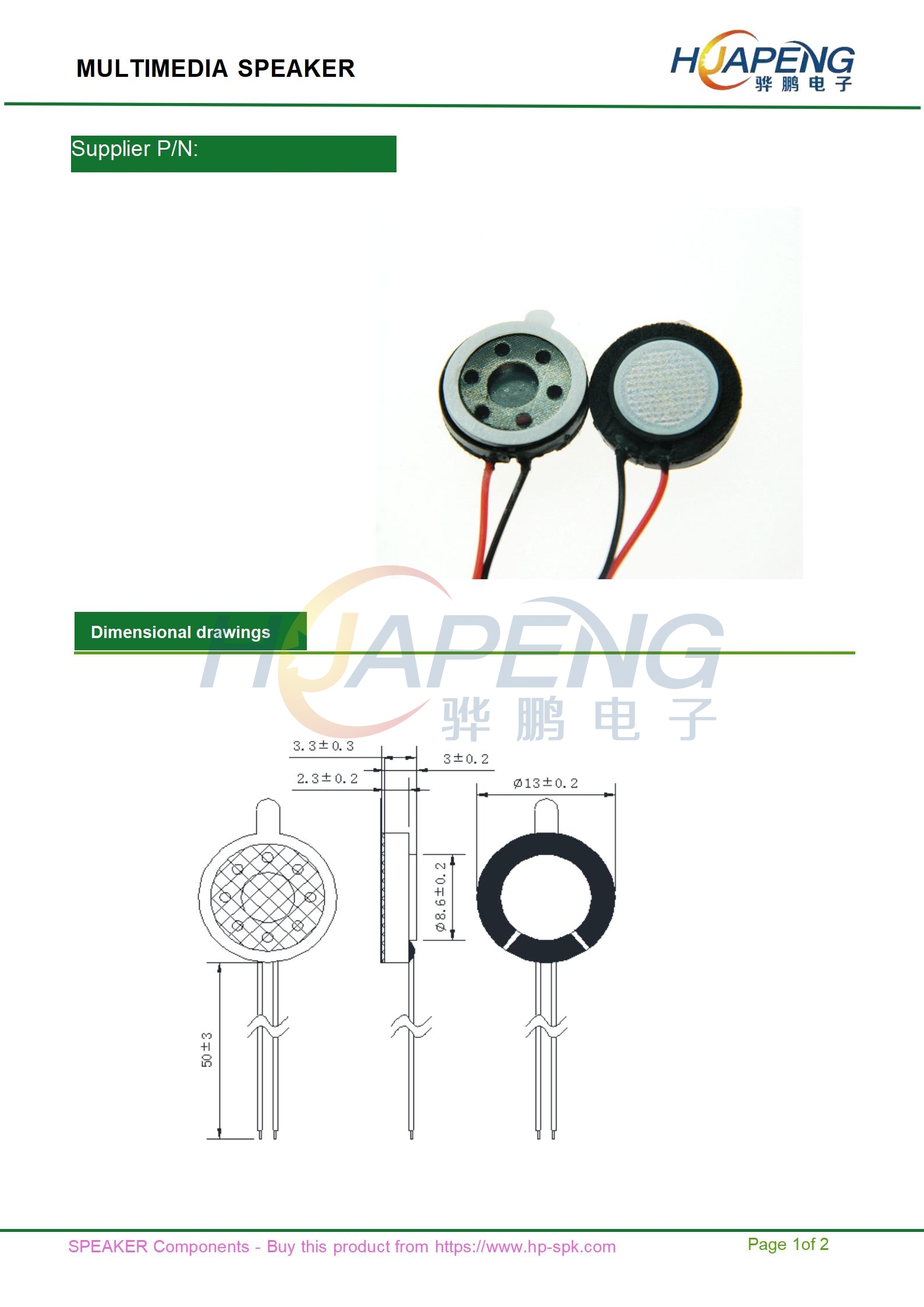

• Size： D13mm H3.5 mm
• Impedance： 8 ±20% Ω
• SPL(1W 1m sine wave) 79±3dB(at 1.0KHz )

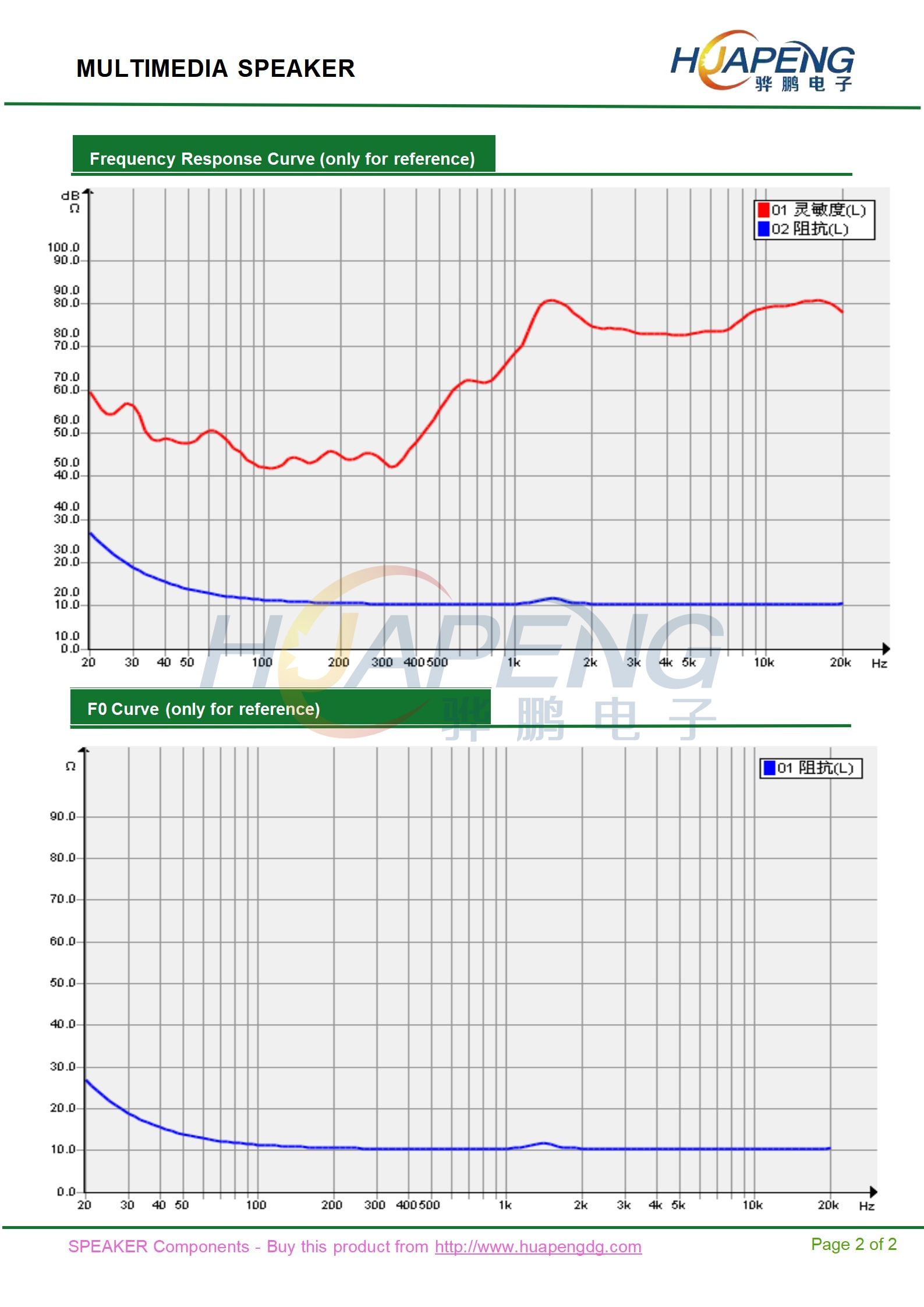

• Resonance frequency 1400±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 0.5 W
• Maximum input power 0.6 W
• Buzz & Rattle must be normal (at sine wave 2V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
