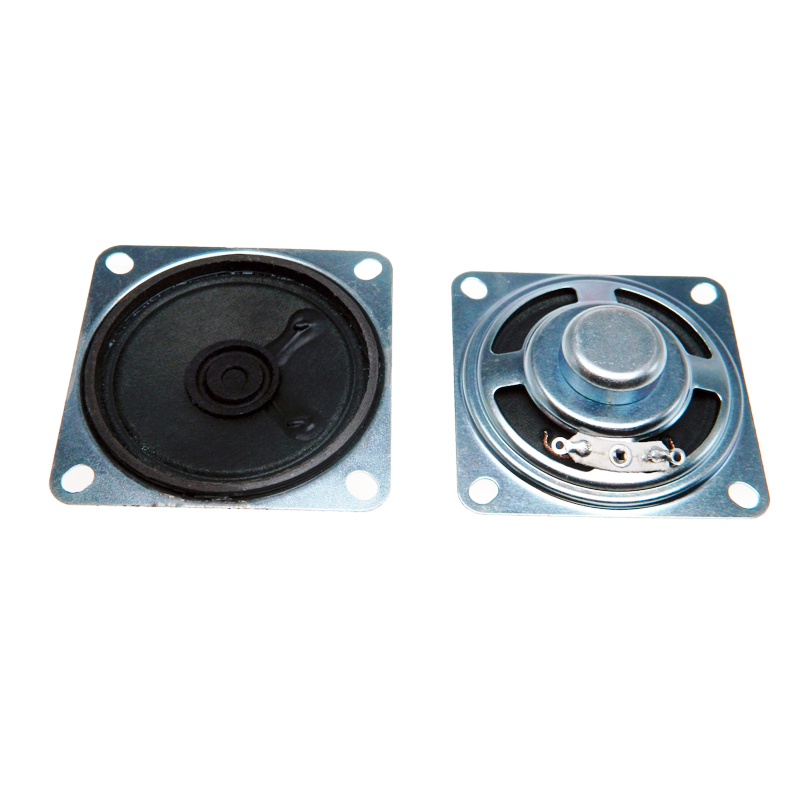

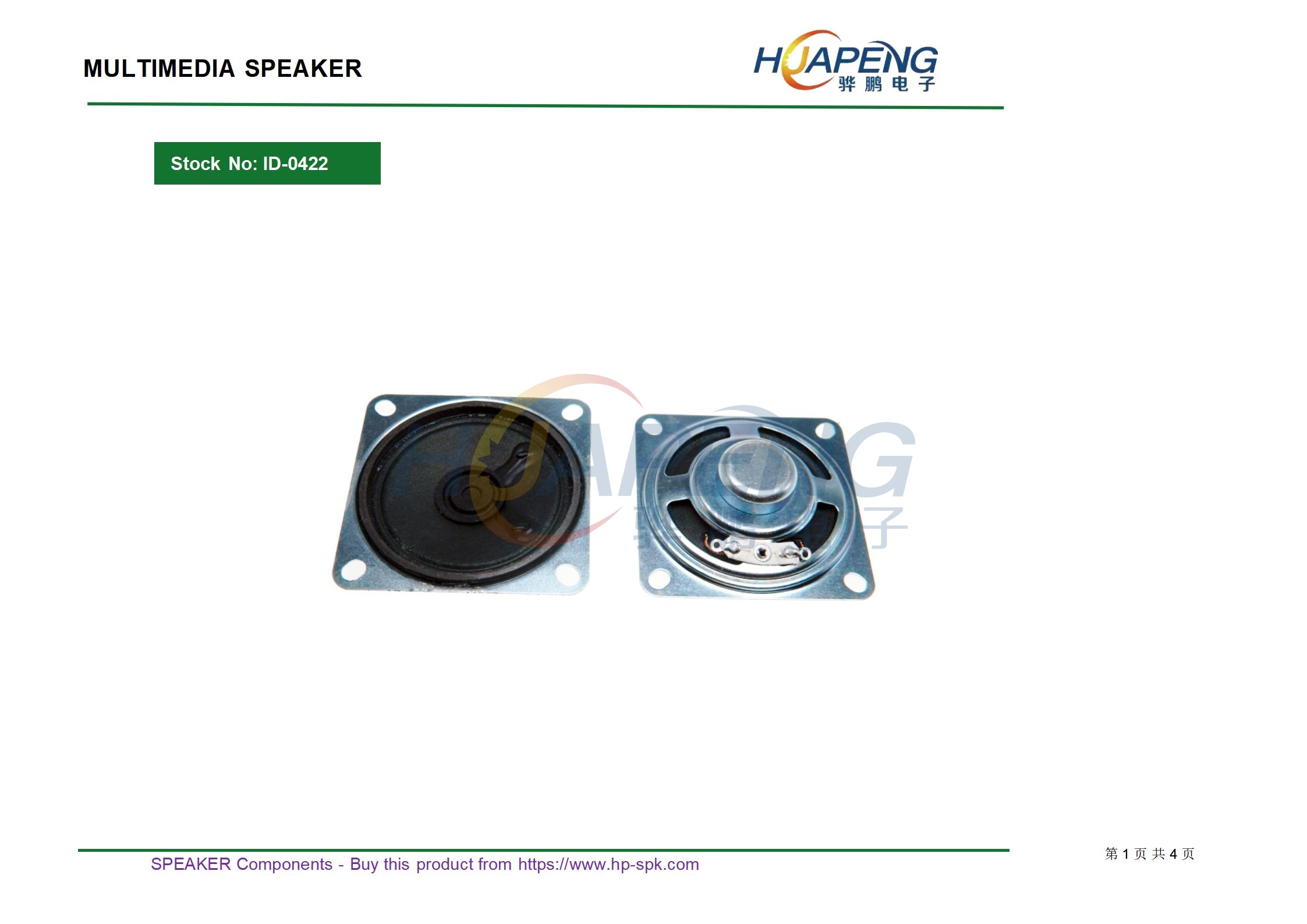

全频喇叭型号：HP052-4P-24006C-A规格：方形52mm4Ω3W全频喇叭

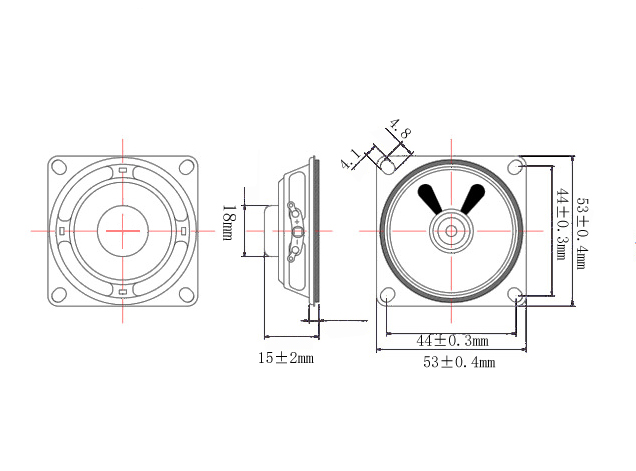

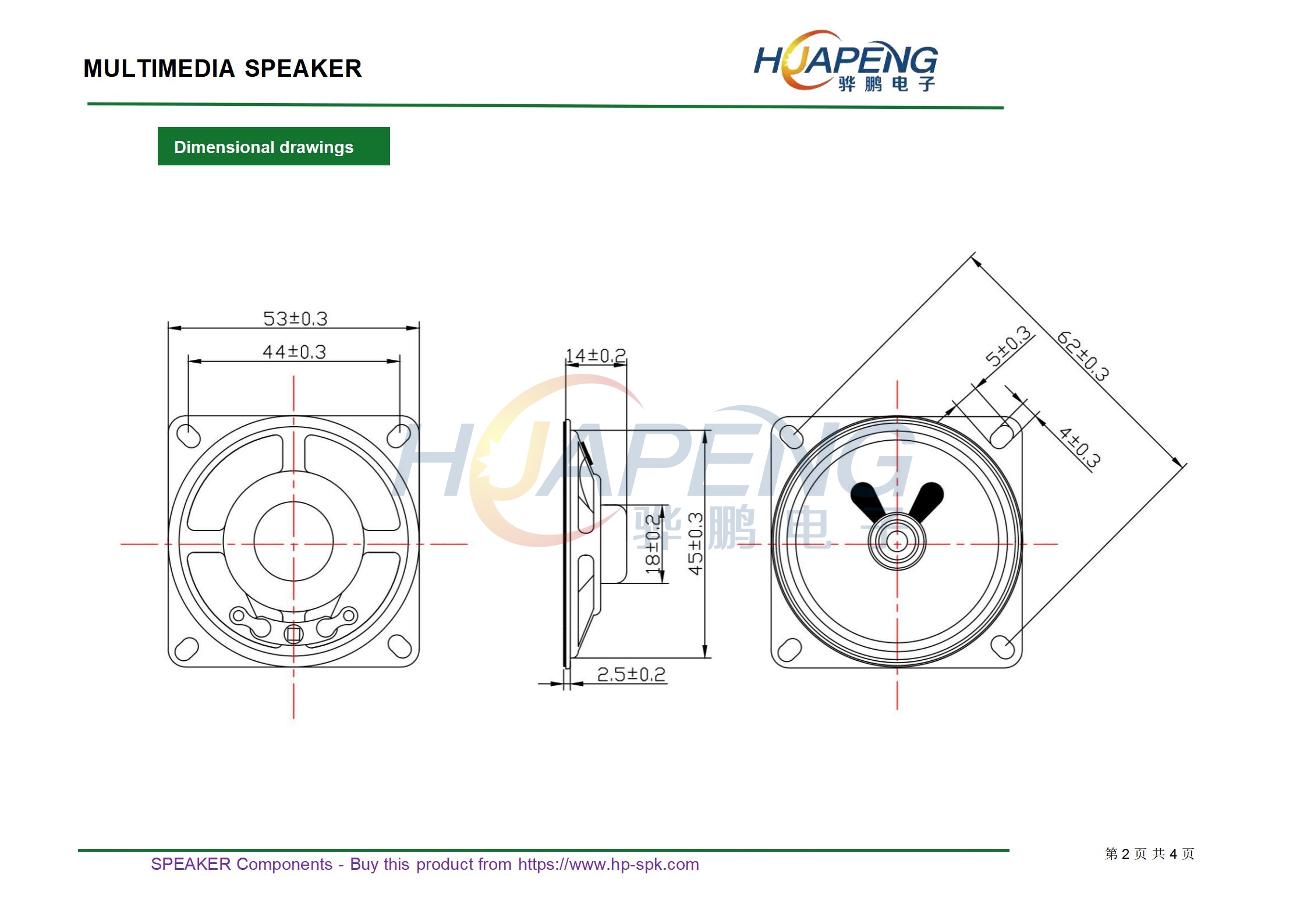

• Size： D 52*52 mm H 15 mm
• Impedance： 4 ±20% Ω
• SPL(1W 1m sine wave) 91 ±3dB(at 800,1000.,1200,1500Hz )

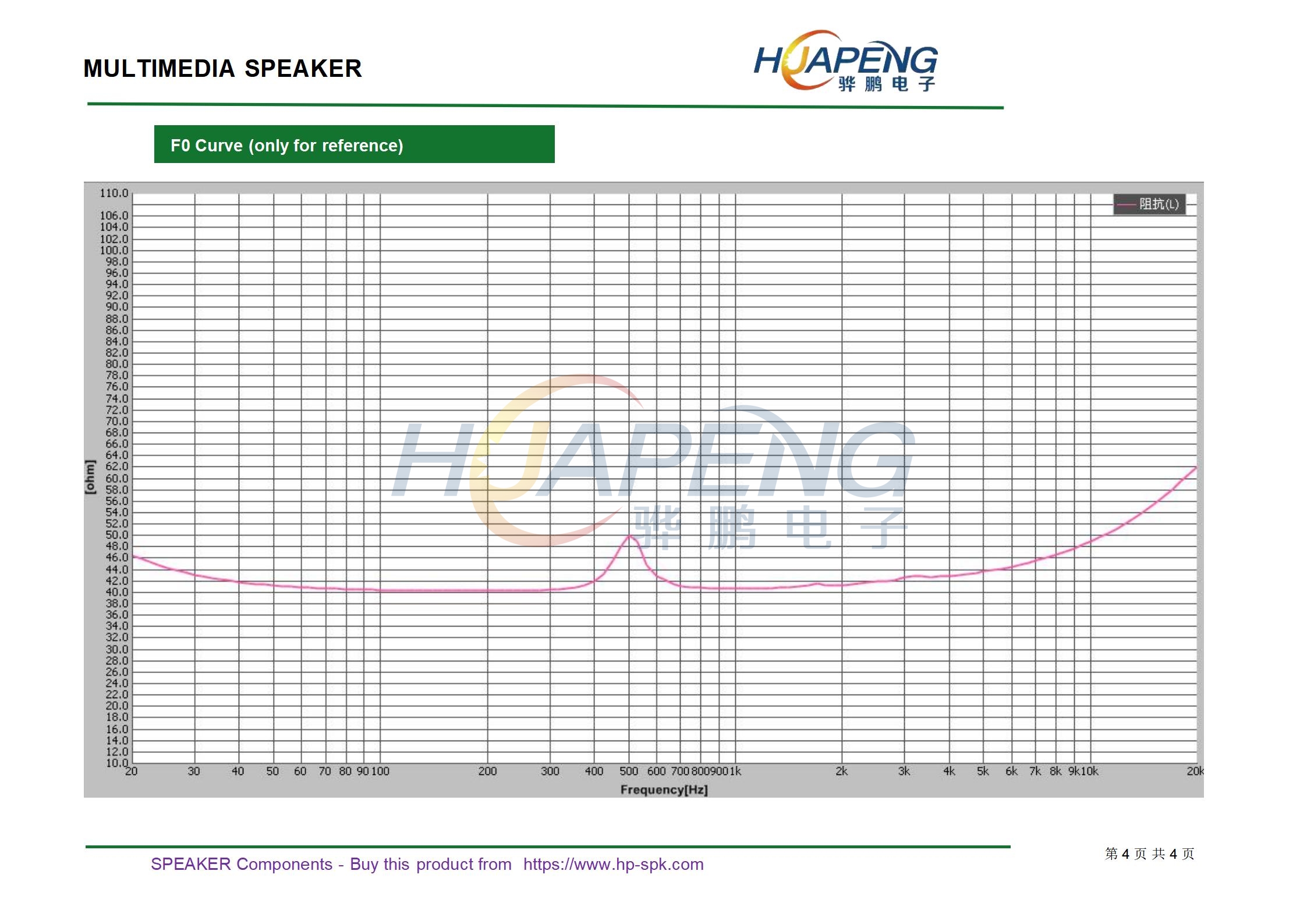

• Resonance frequency 170 ±20% Hz

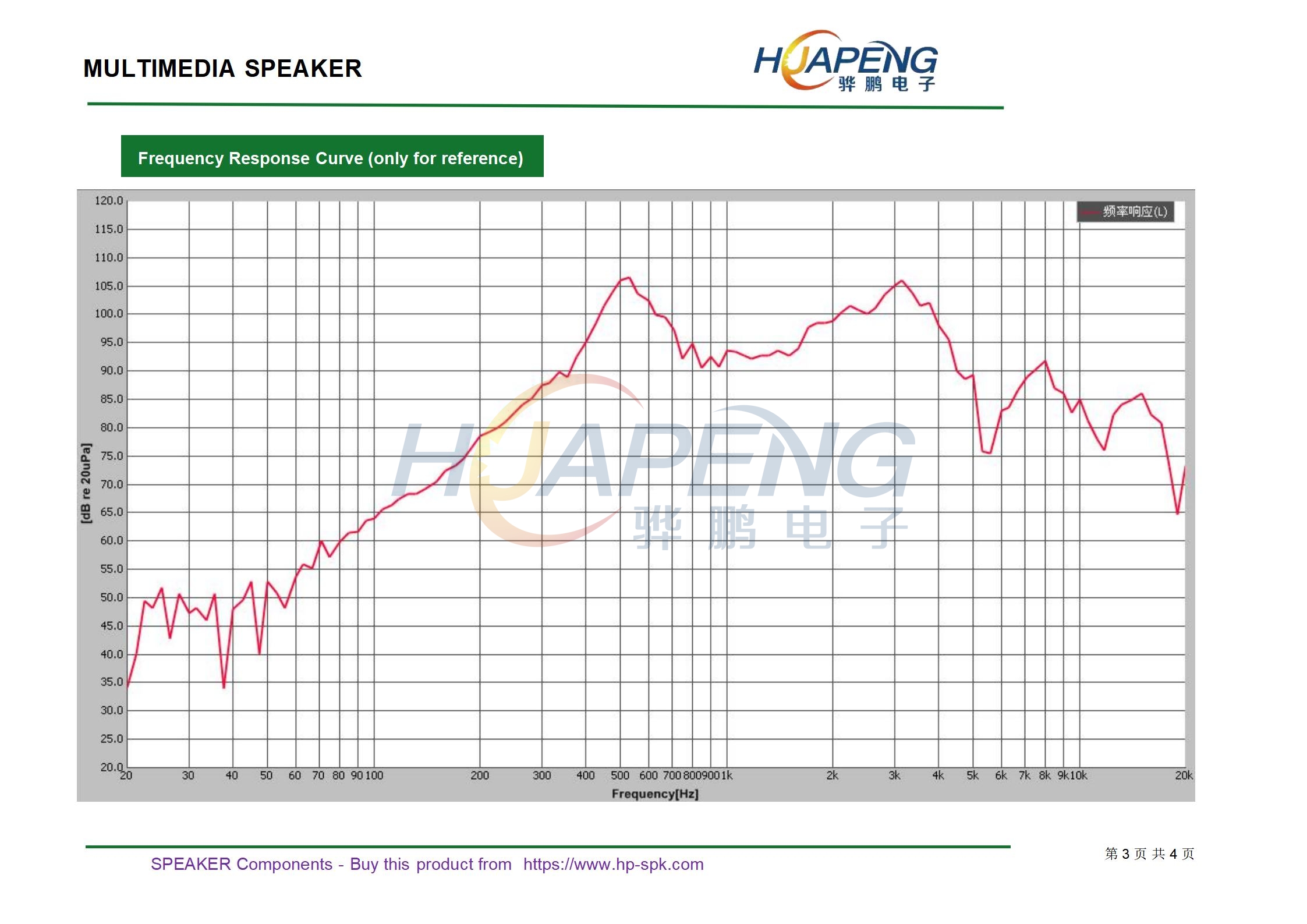

• Frequency Range Fo~10KHz
• Rated input power 2 W
• Maximum input power 3 W
• Buzz & Rattle must be normal (at sine wave 2.8 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
