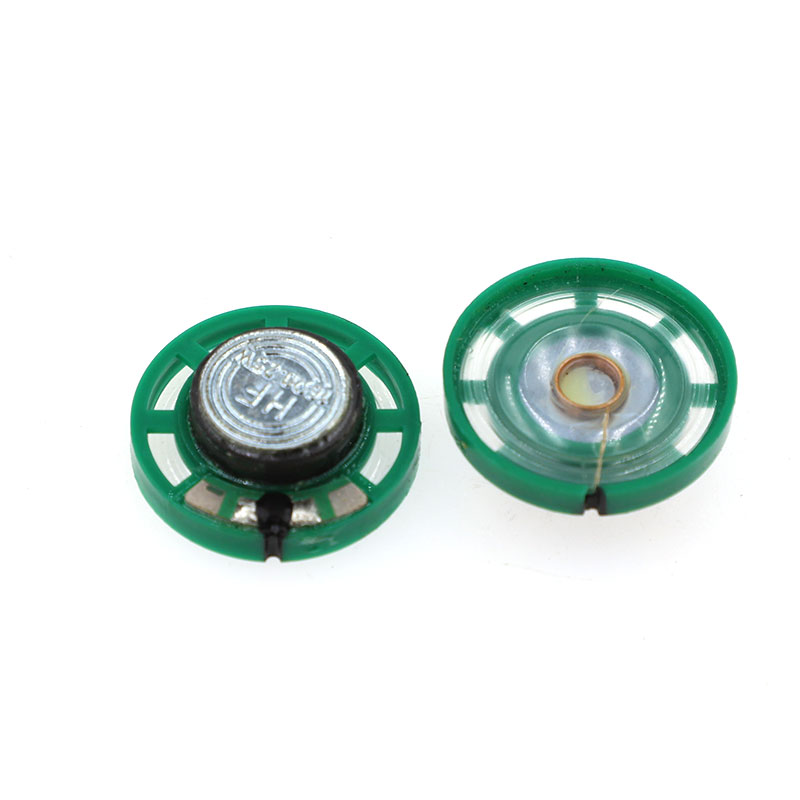

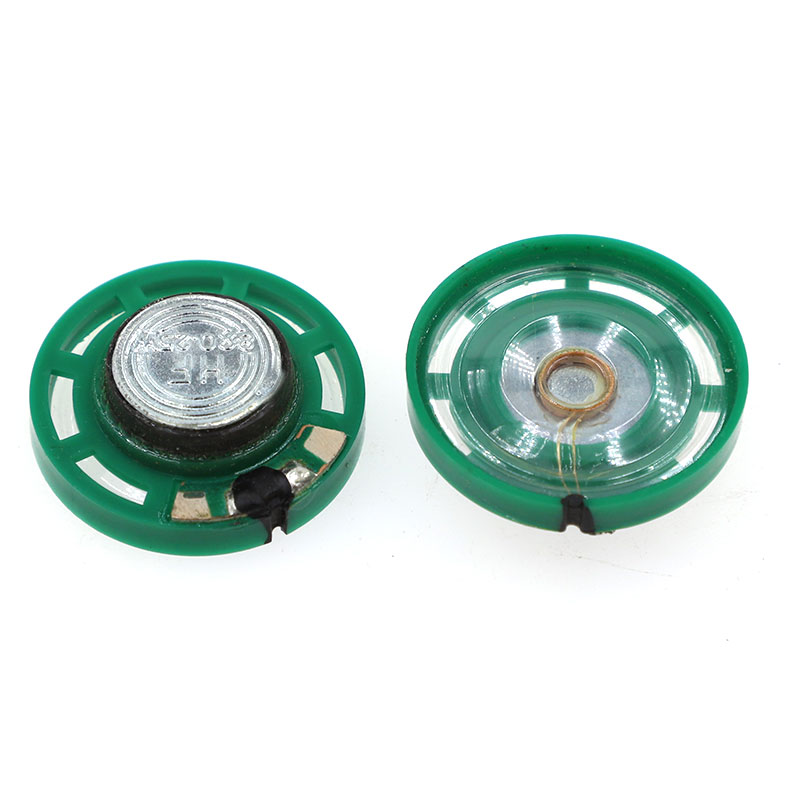

超薄塑胶内磁喇叭型号：HP235008025-00S规格：φ23mmH5.0mm8Ω0.25W塑胶内磁喇叭

• Size： D23mm H 5.0 mm
• Impedance： 8 ±20% Ω
• SPL(1W 1m sine wave) 850 ±3dB(at 800,1000.,1200,1500Hz )
• Resonance frequency 90 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 0.25 W
• Maximum input power 0.5 W
• Buzz & Rattle must be normal (at sine wave 2.0 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
