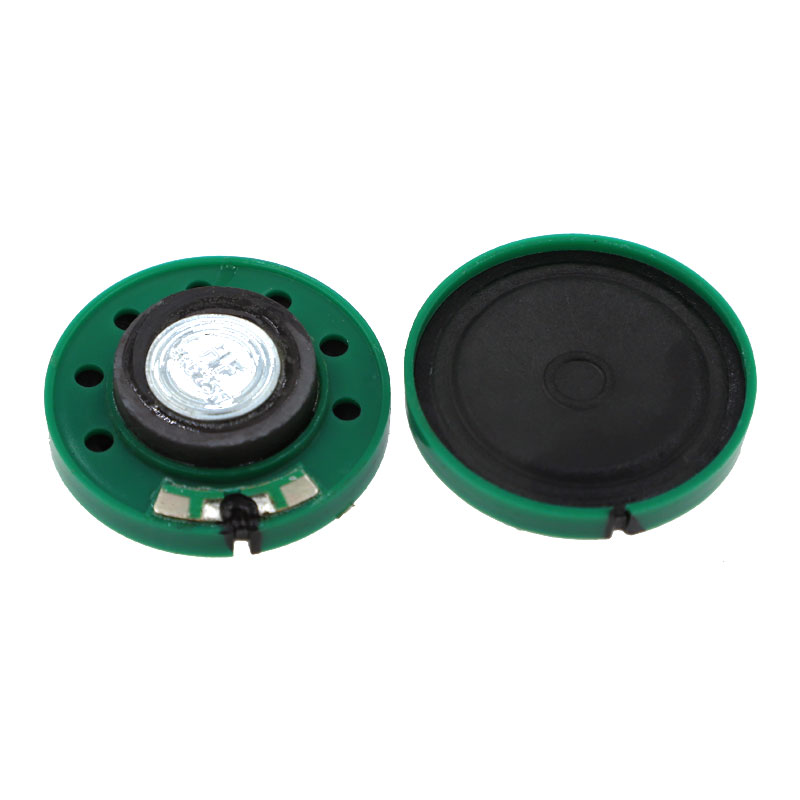

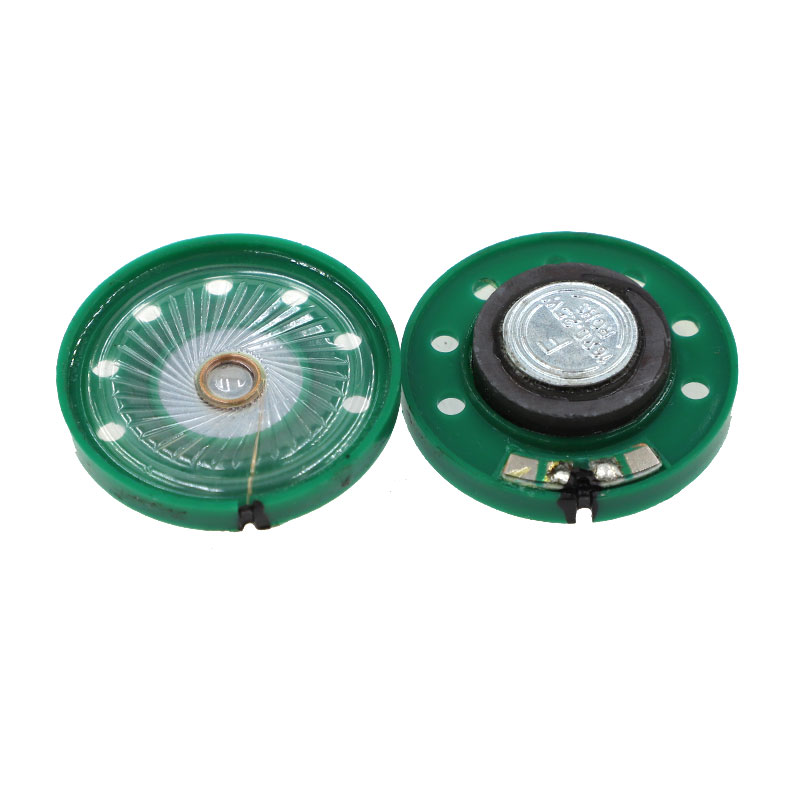

超薄塑胶内磁喇叭型号：HP36050805C-02S规格：φ36mmH5mm8Ω0.5W塑胶大磁加网花膜喇叭

• Size： D36mm H 5.0 mm
• Impedance： 8 ±20% Ω
• SPL(1W 1m sine wave) 92 ±3dB(at 800,1000.,1200,1500Hz )
• Resonance frequency 500 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 0.5 W
• Maximum input power 0.8 W
• Buzz & Rattle must be normal (at sine wave 2.0 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
