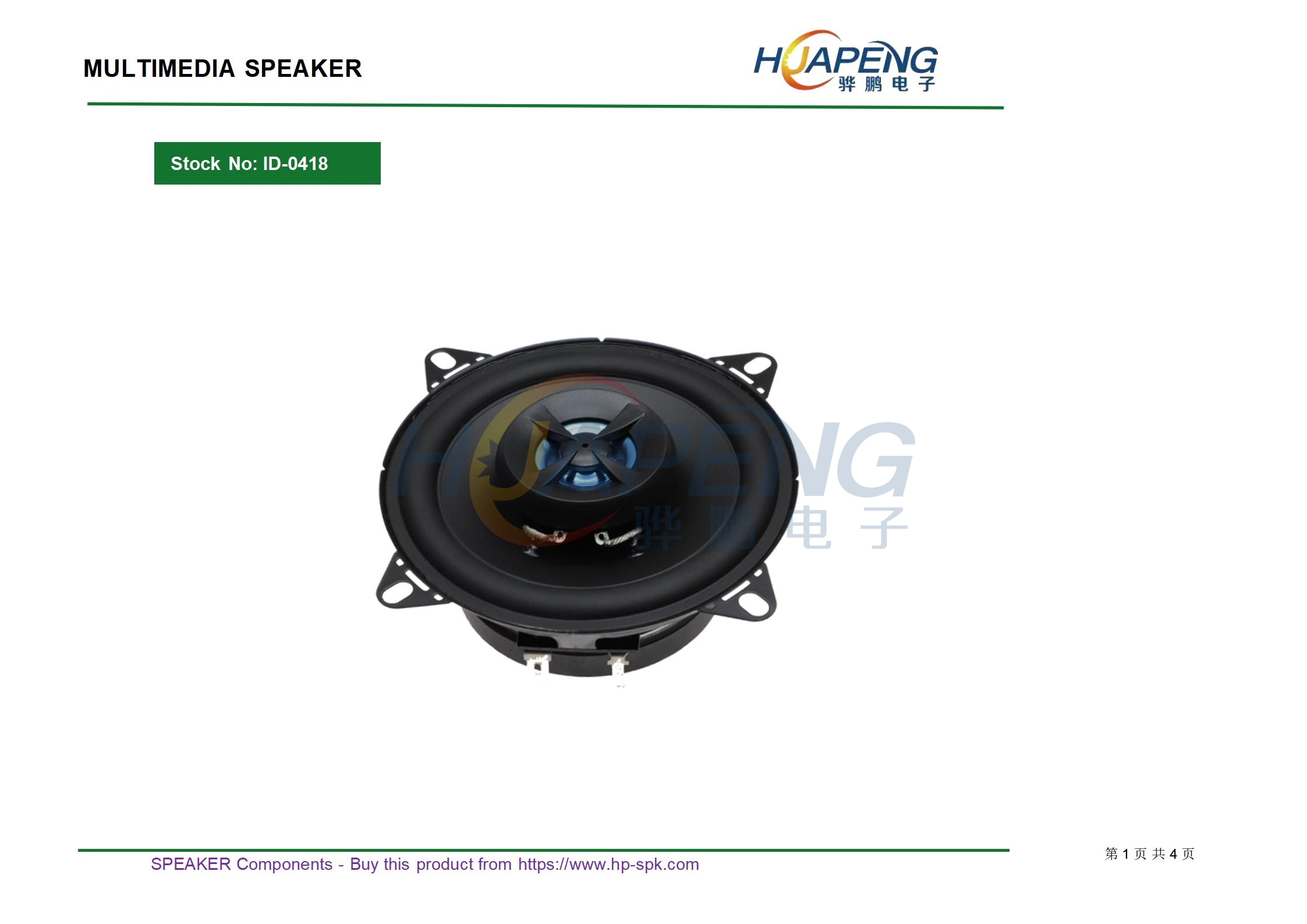

同轴汽车喇叭型号：HP102-4R-0418D-D规格：4寸 同轴汽车喇叭4Ω 10W

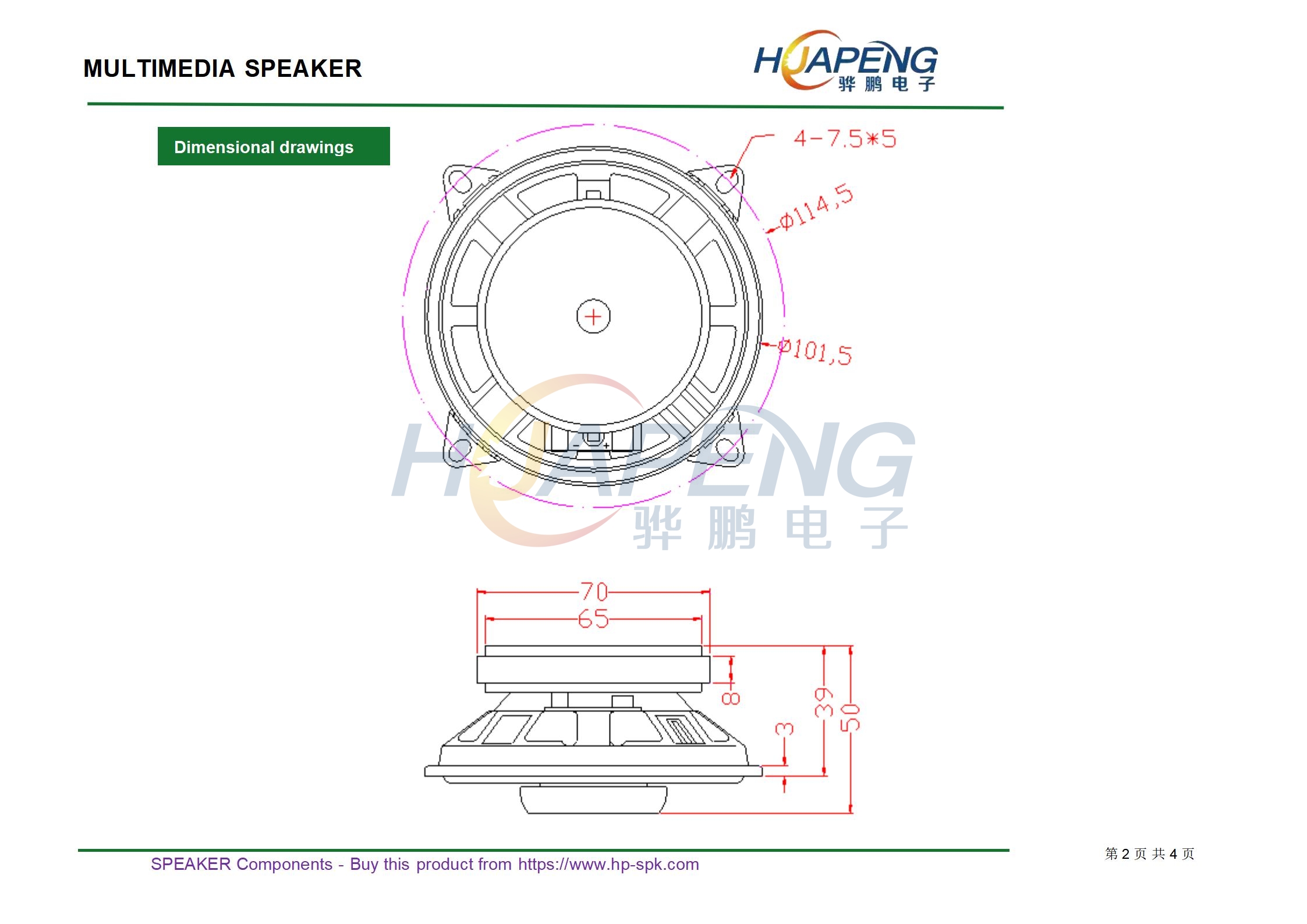

• Size： D 102 mm H 50 mm
• Impedance： 4 ±20% Ω

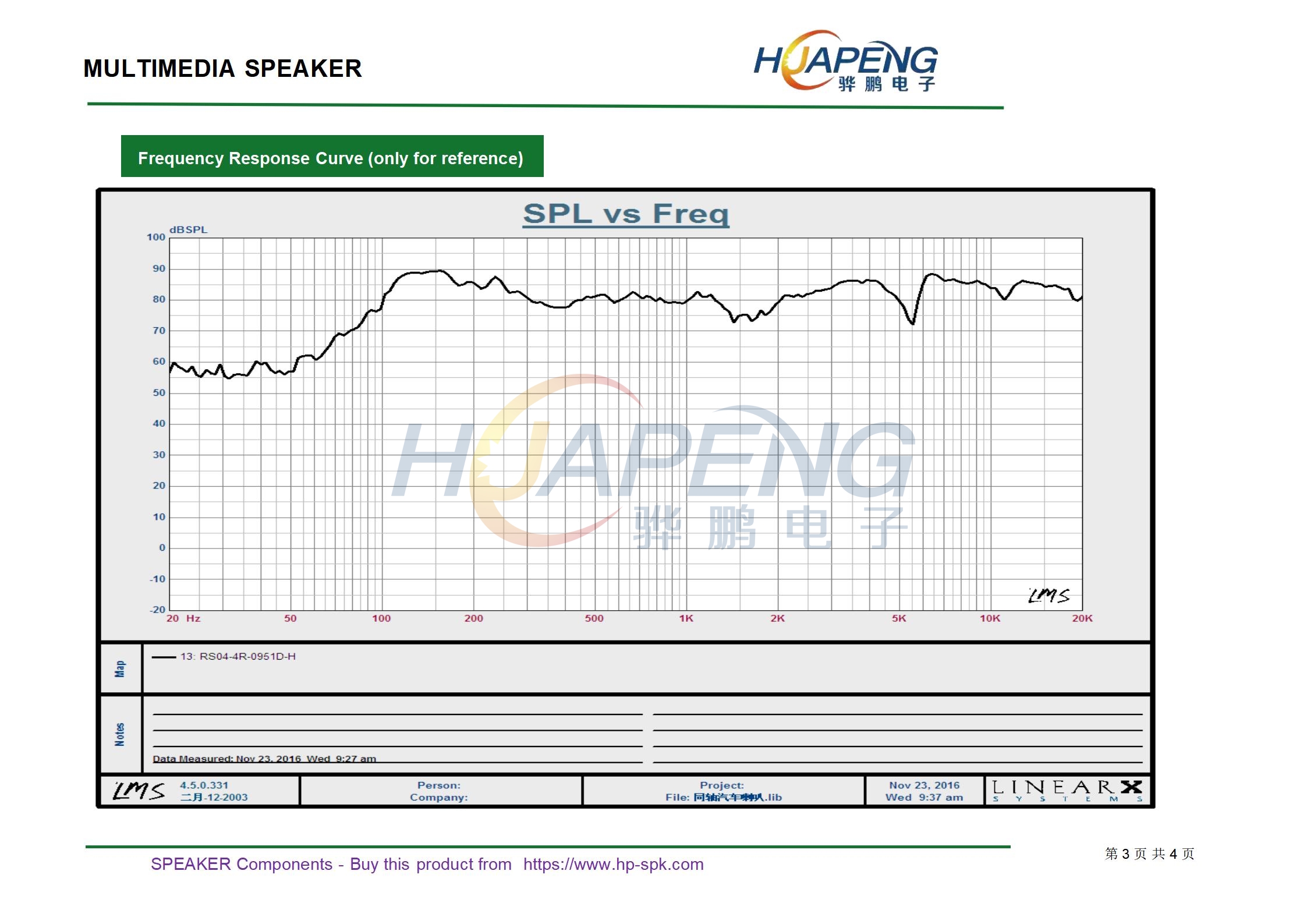

• SPL(1W 1m sine wave) 80 ±3dB(at 800,1000.,1200,1500Hz )

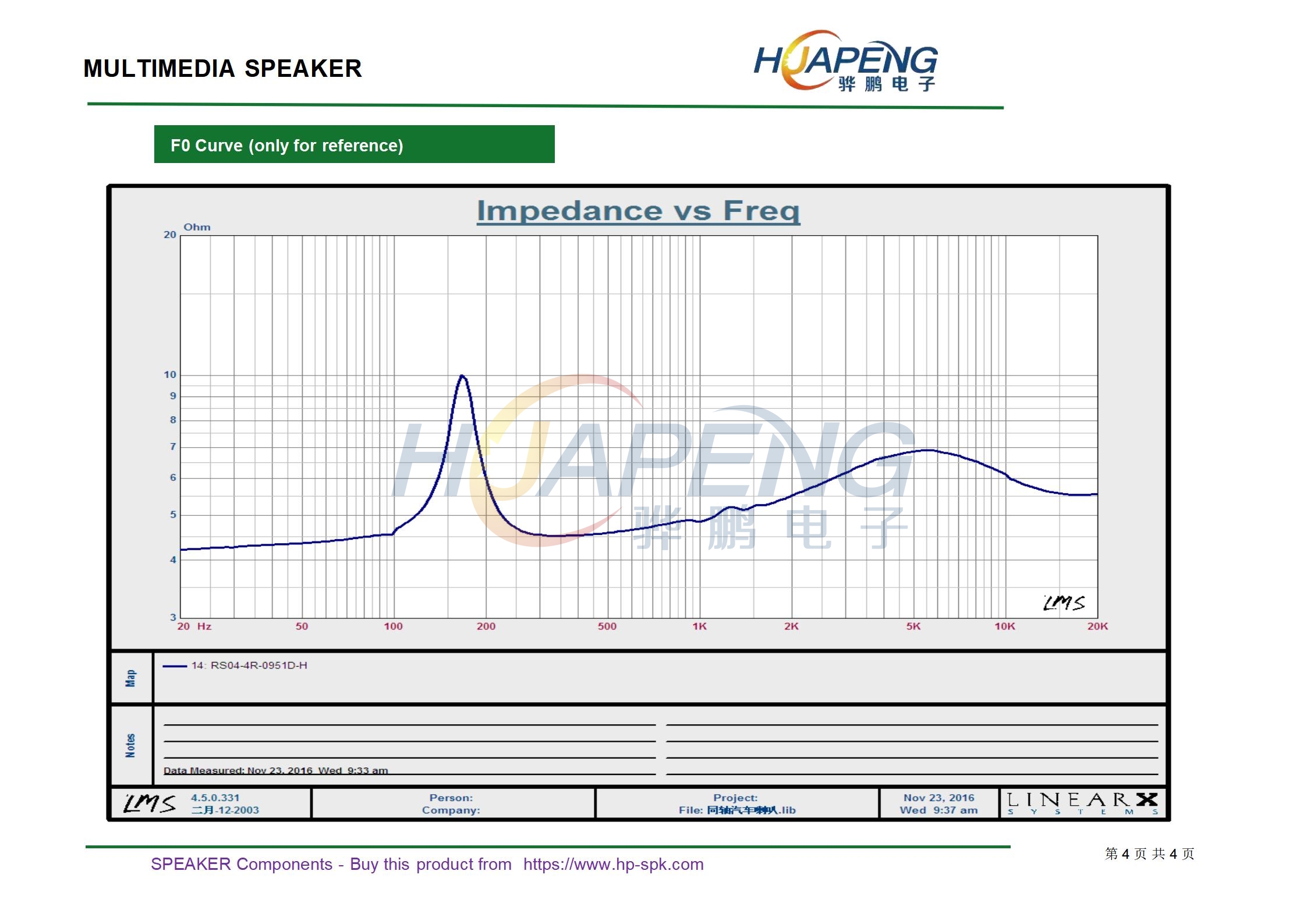

• Resonance frequency 160 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 10 W
• Maximum input power 20 W
• Buzz & Rattle must be normal (at sine wave 6.32 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
• Stock No:
