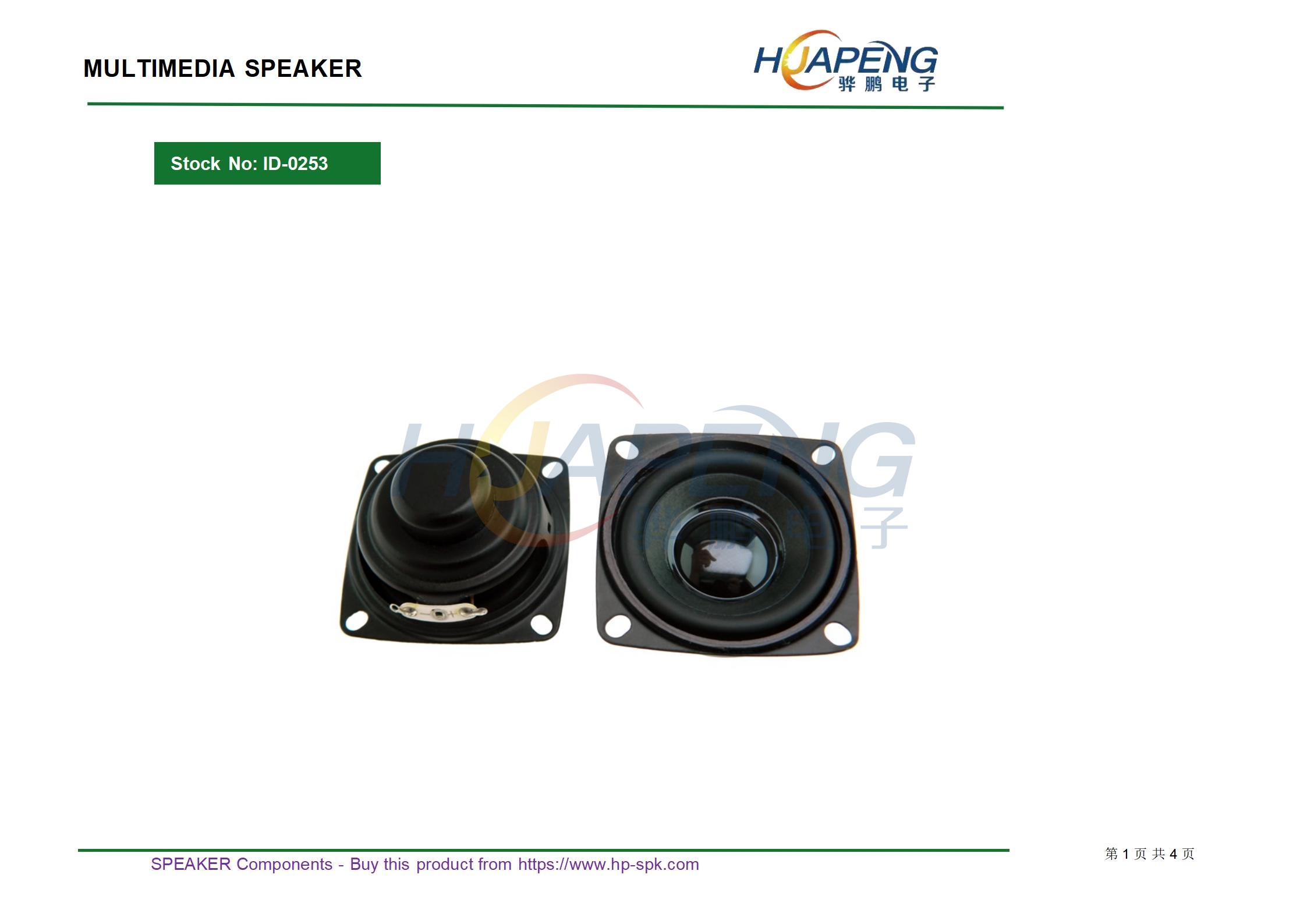

音箱喇叭型号：HP053-4U-0157C-C规格：方形53mm 4Ω5W PU盆16芯双磁

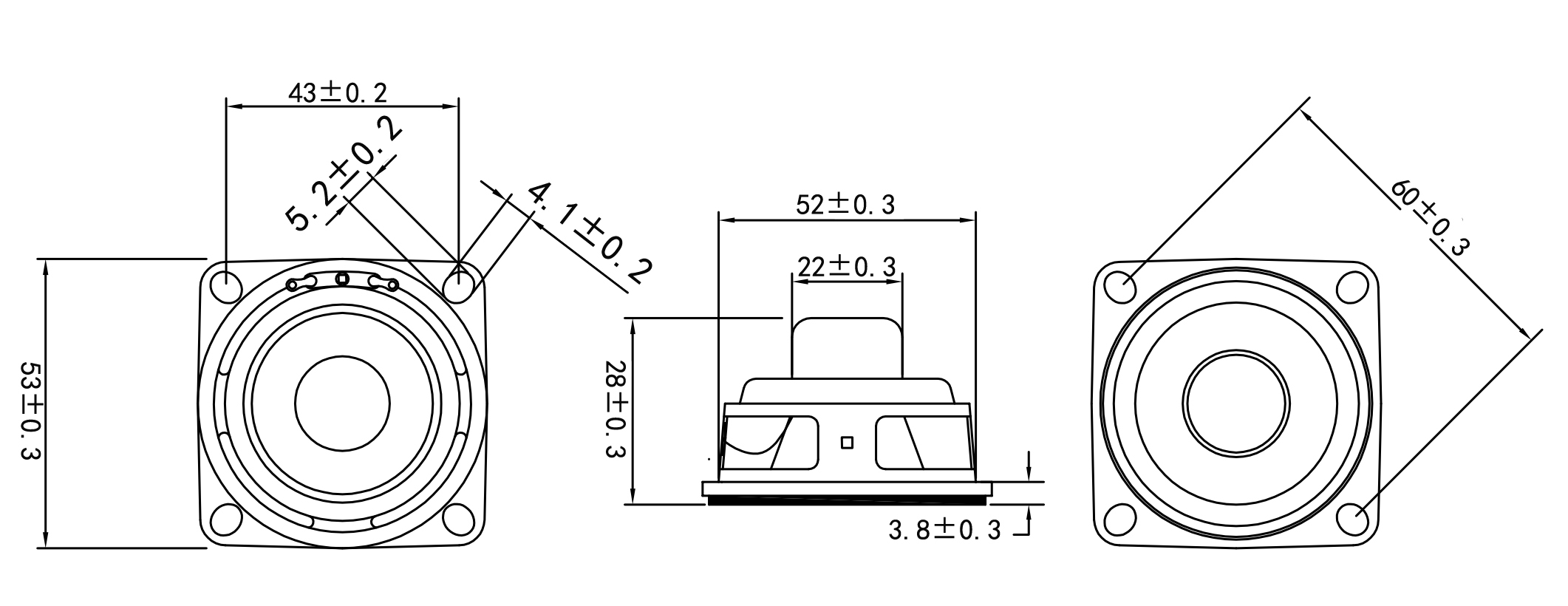

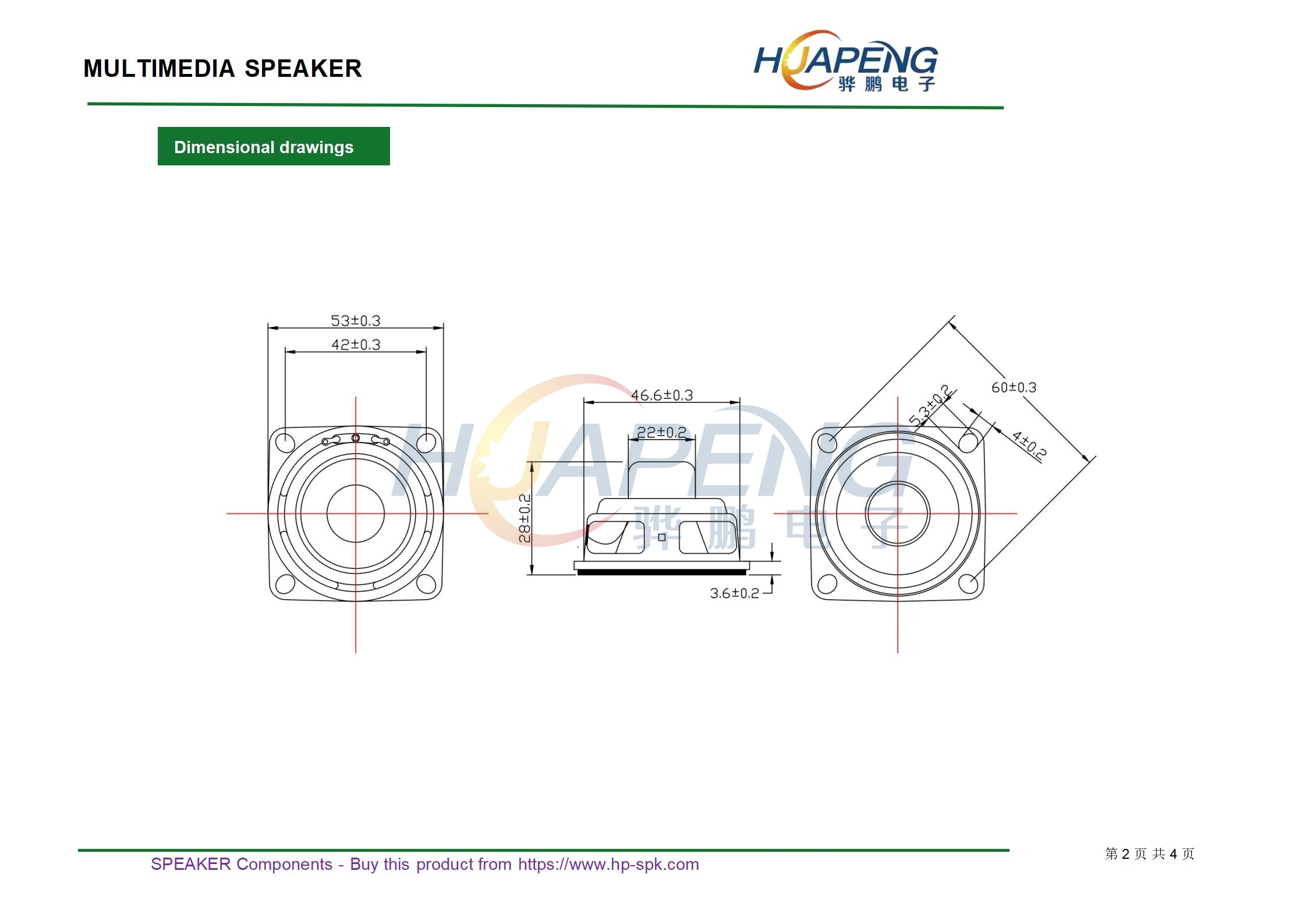

• Size： D 53 mm H 28 mm
• Impedance： 4 ±20% Ω
• SPL(1W 1m sine wave) 88 ±3dB(at 800,1000.,1200,1500Hz )

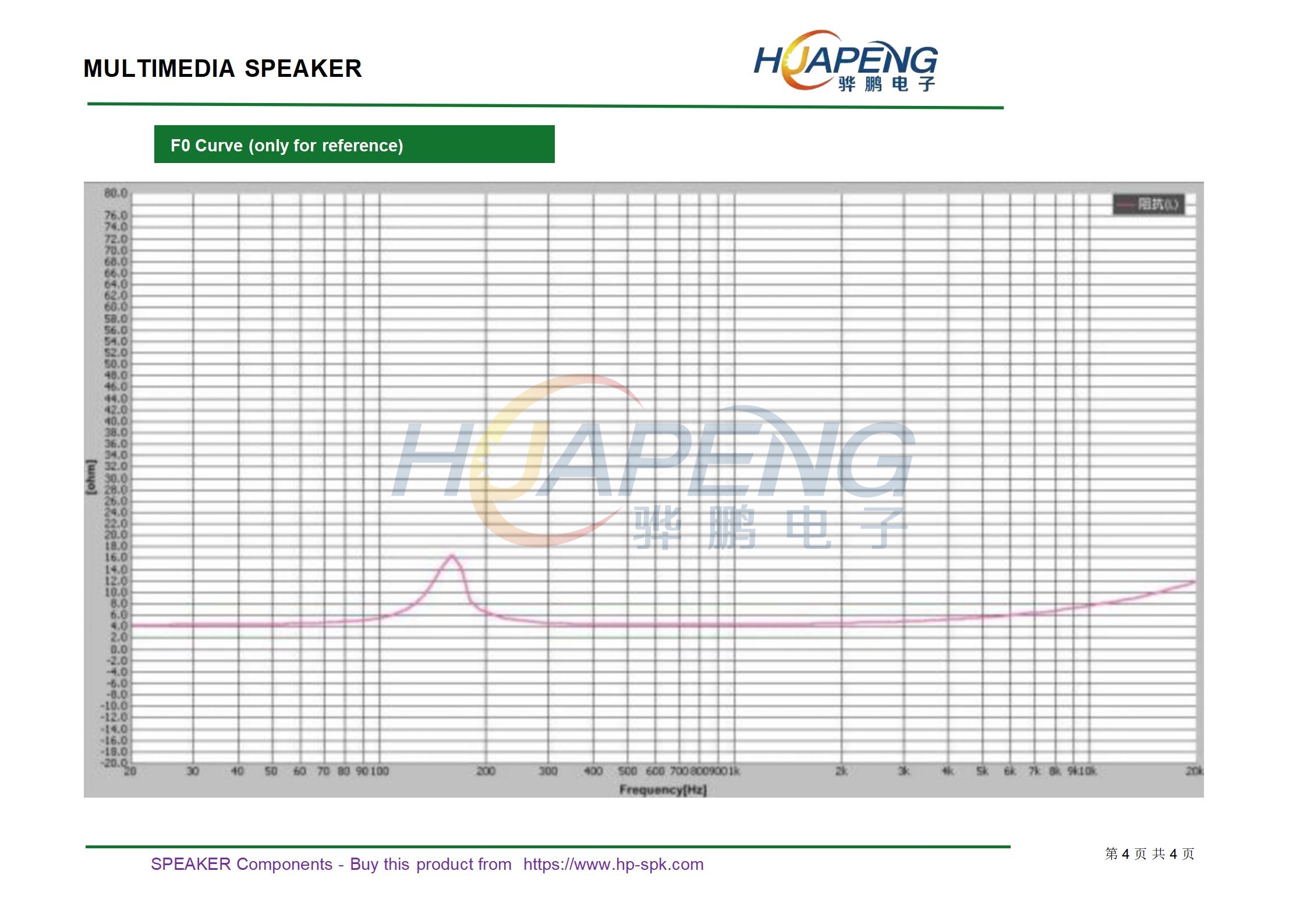

• Resonance frequency 150 ±20% Hz

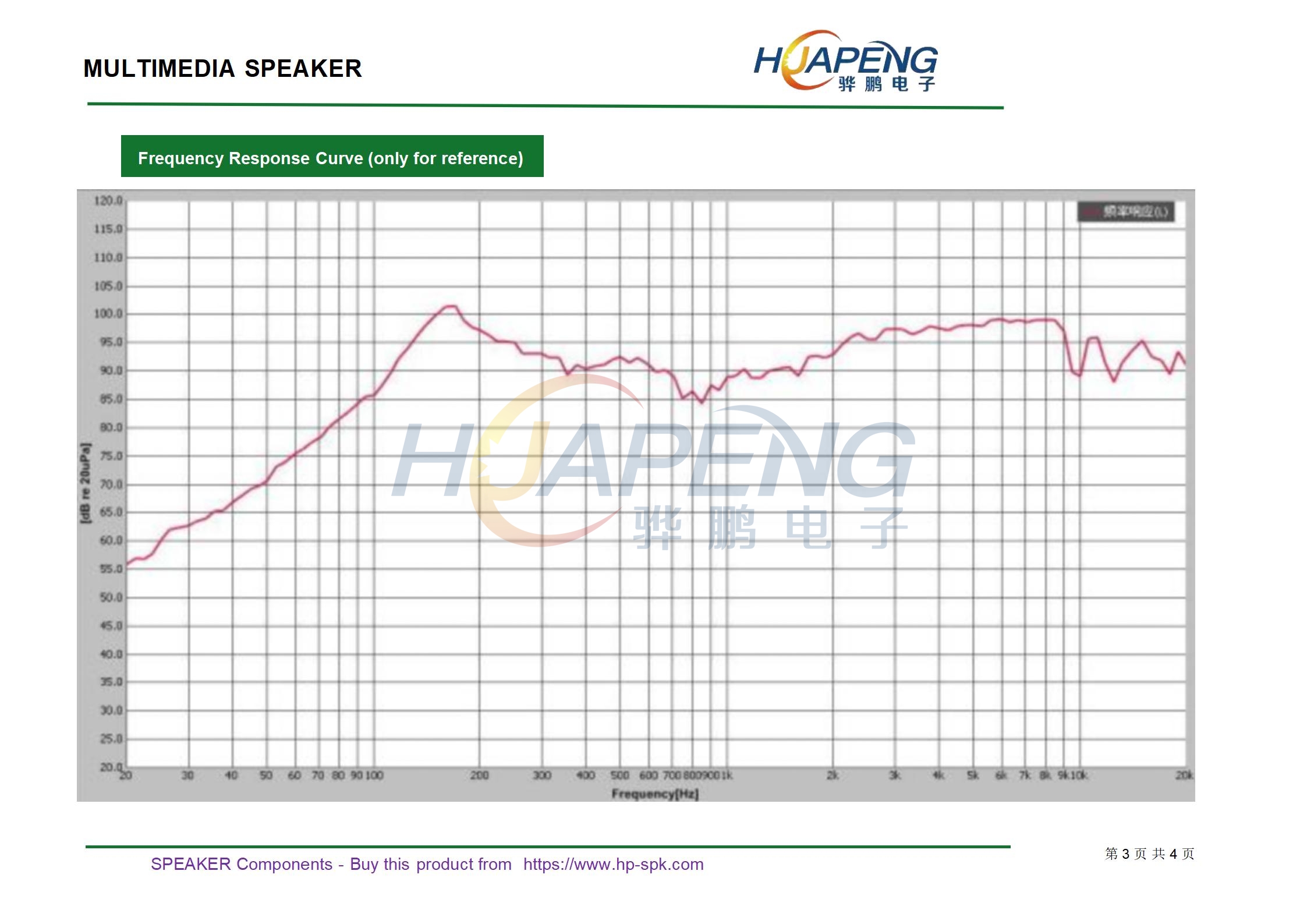

• Frequency Range Fo~10KHz
• Rated input power 5 W
• Maximum input power 6 W
• Buzz & Rattle must be normal (at sine wave 4.47 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
