耳机喇叭型号：HP3016W32B规格：φ30mmH7.5mm32Ω黑磁耳机喇叭

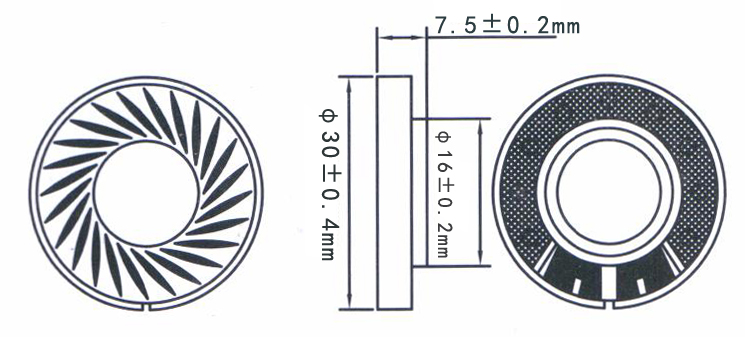

• Size D 30 mmH 7.5 mm
• lmpedance 32 +20%
• Resonance frequency 500+20%

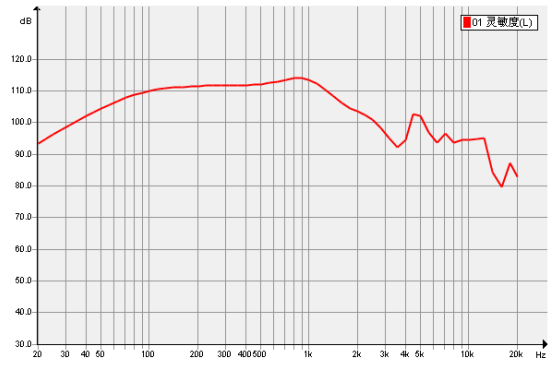

• SPL(dB 1mw CRY6125Y 1KHZ 0.1 W /0.1 M) 113 ±3dB(at 1.0KHz)
• Rated input power 20 mW
• Maximum input power 30 mW
• Buzz & Rattle(AT 0.3V Sine wave between) Must be normal at program solrce . 20Hz ~ 3000Hz 0.3V
• THD MAX 5%
• Operating temperature -20~+60-C
• Storage temperature -20~+60°C
• Environmental Protection Requlation RoHS
