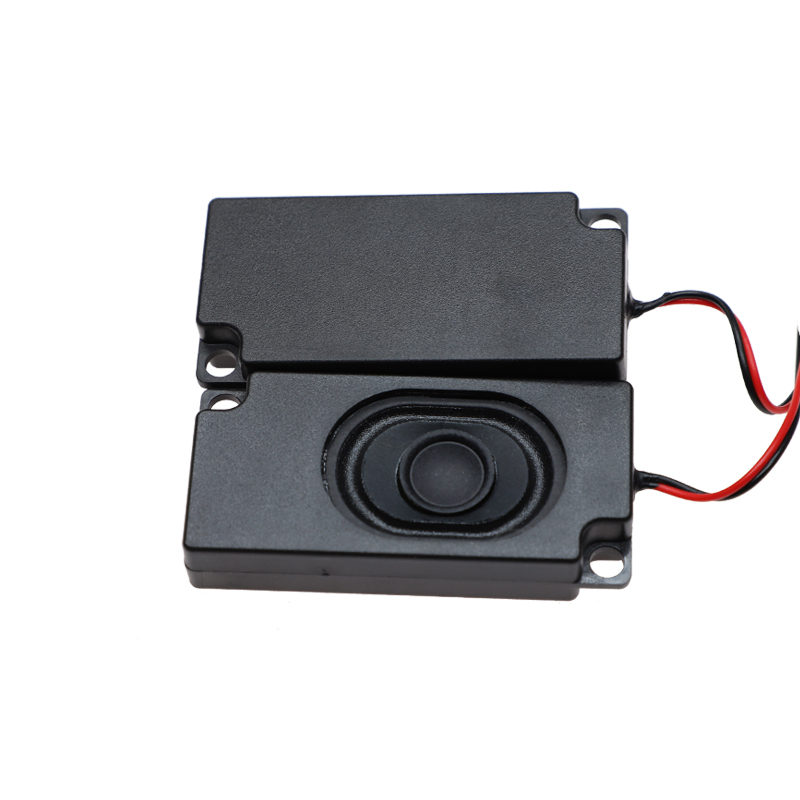

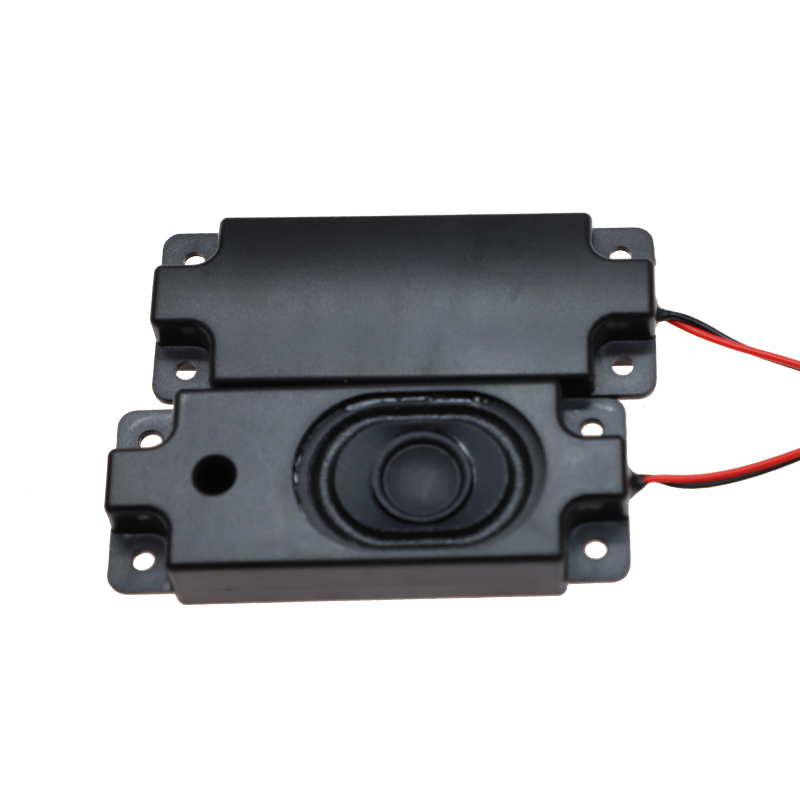

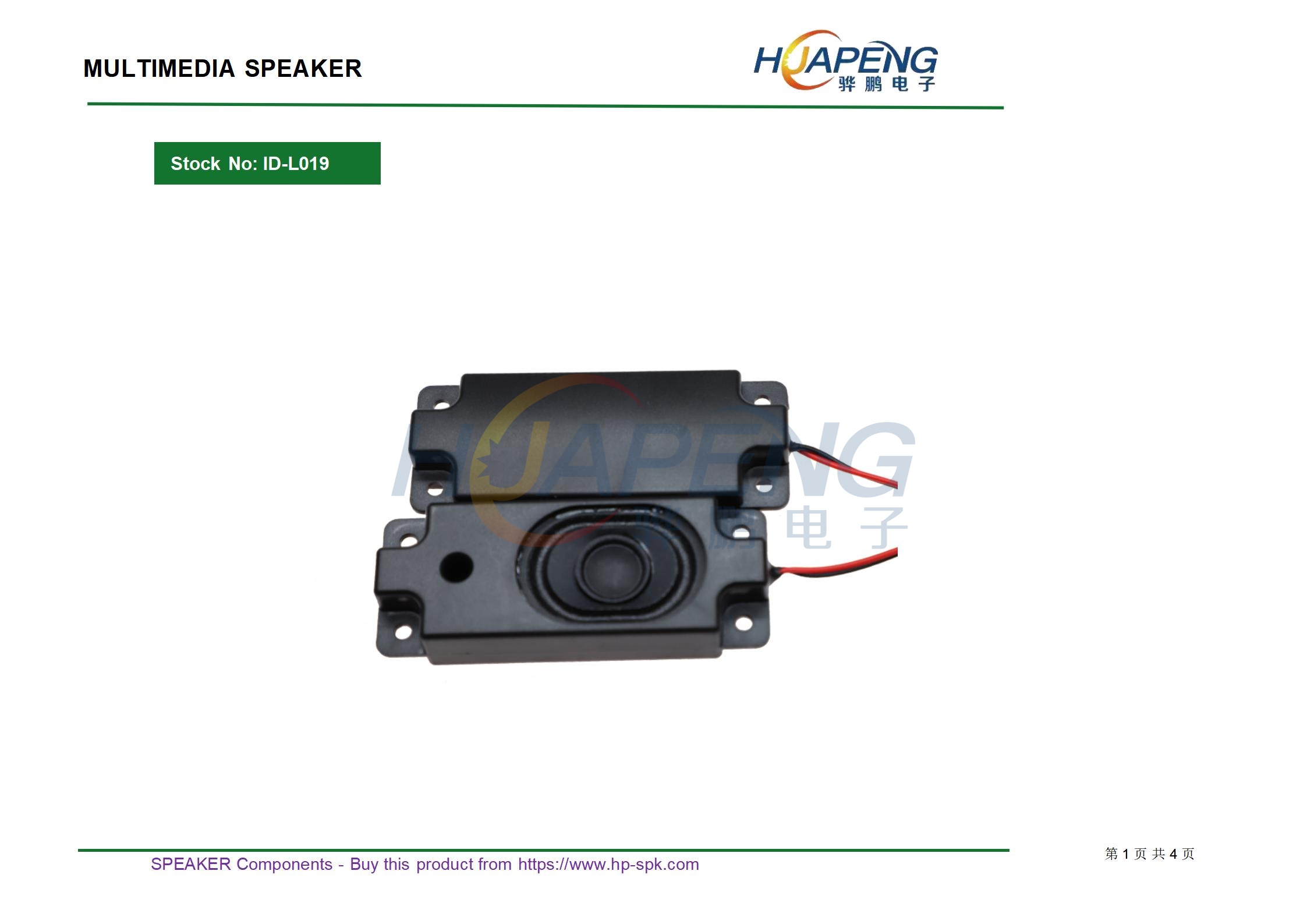

腔体喇叭型号：HP3080BOX4R-4P-125规格：3080BOX4Ω3W 带4P端子线喇叭

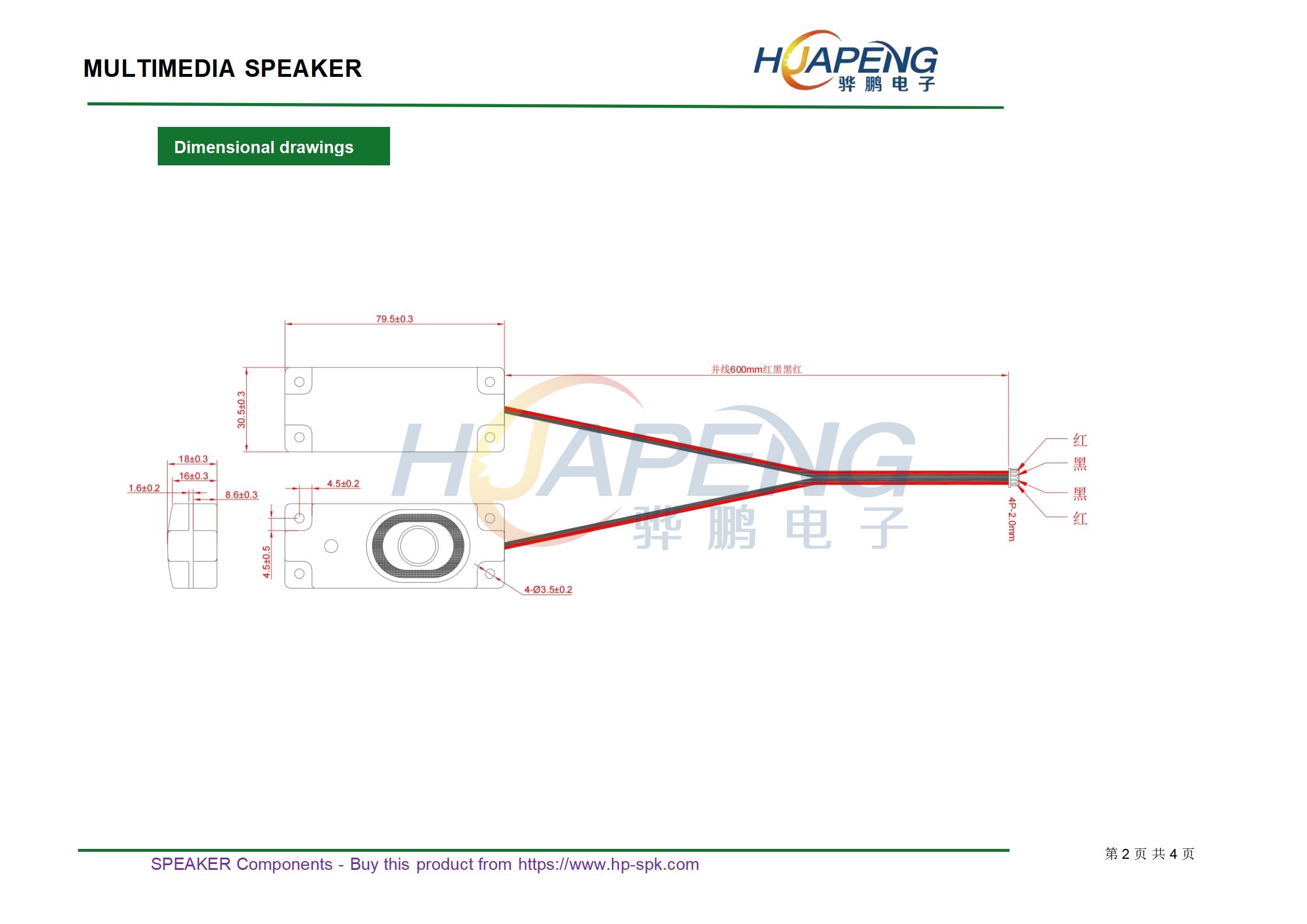

• Size： D 30*80 mm H 18 mm
• Impedance： 4 ±20% Ω
• SPL(1W 1m sine wave) 85 ±3dB(at 800,1000.,1200,1500Hz )

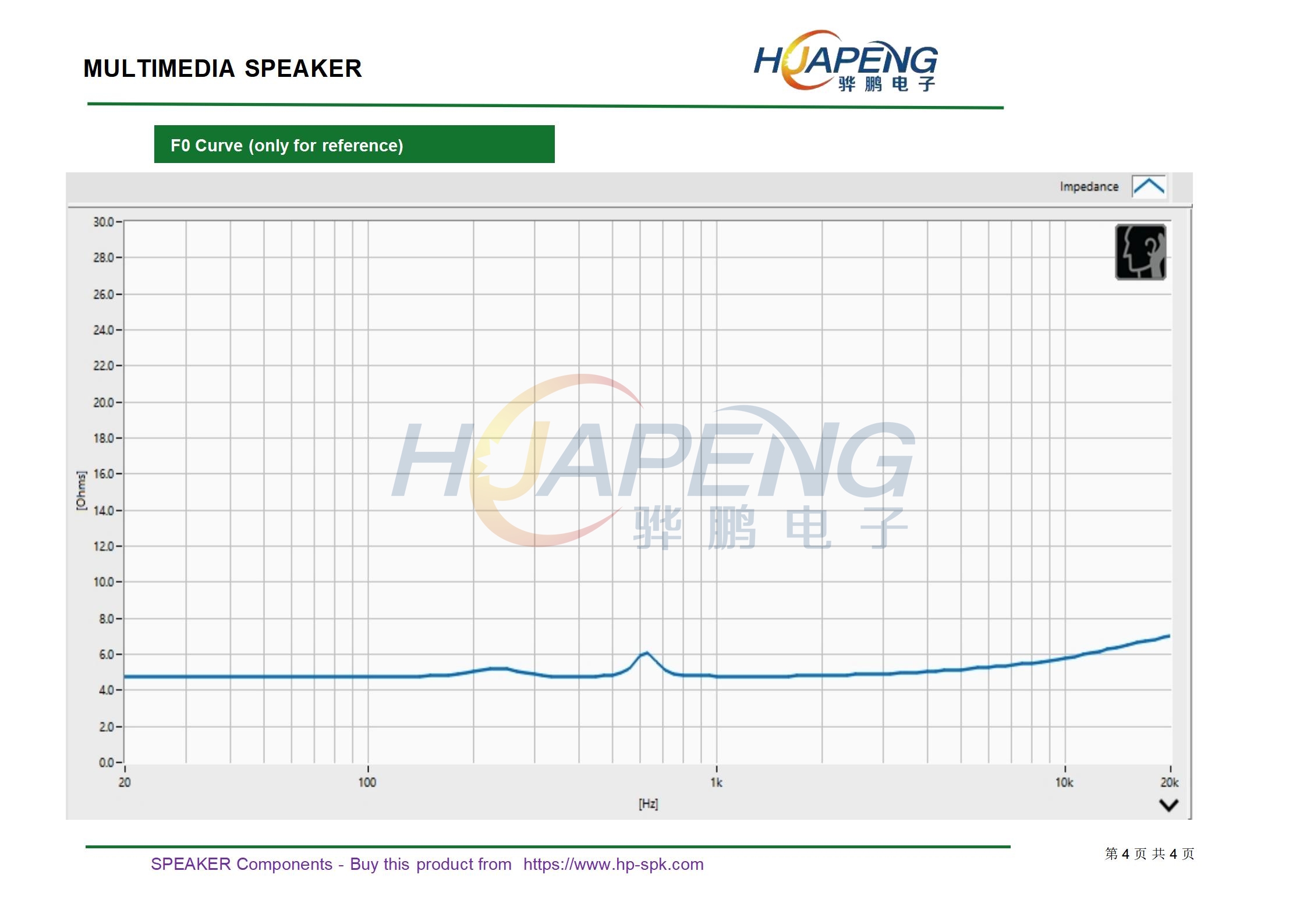

• Resonance frequency 660 ±20% Hz

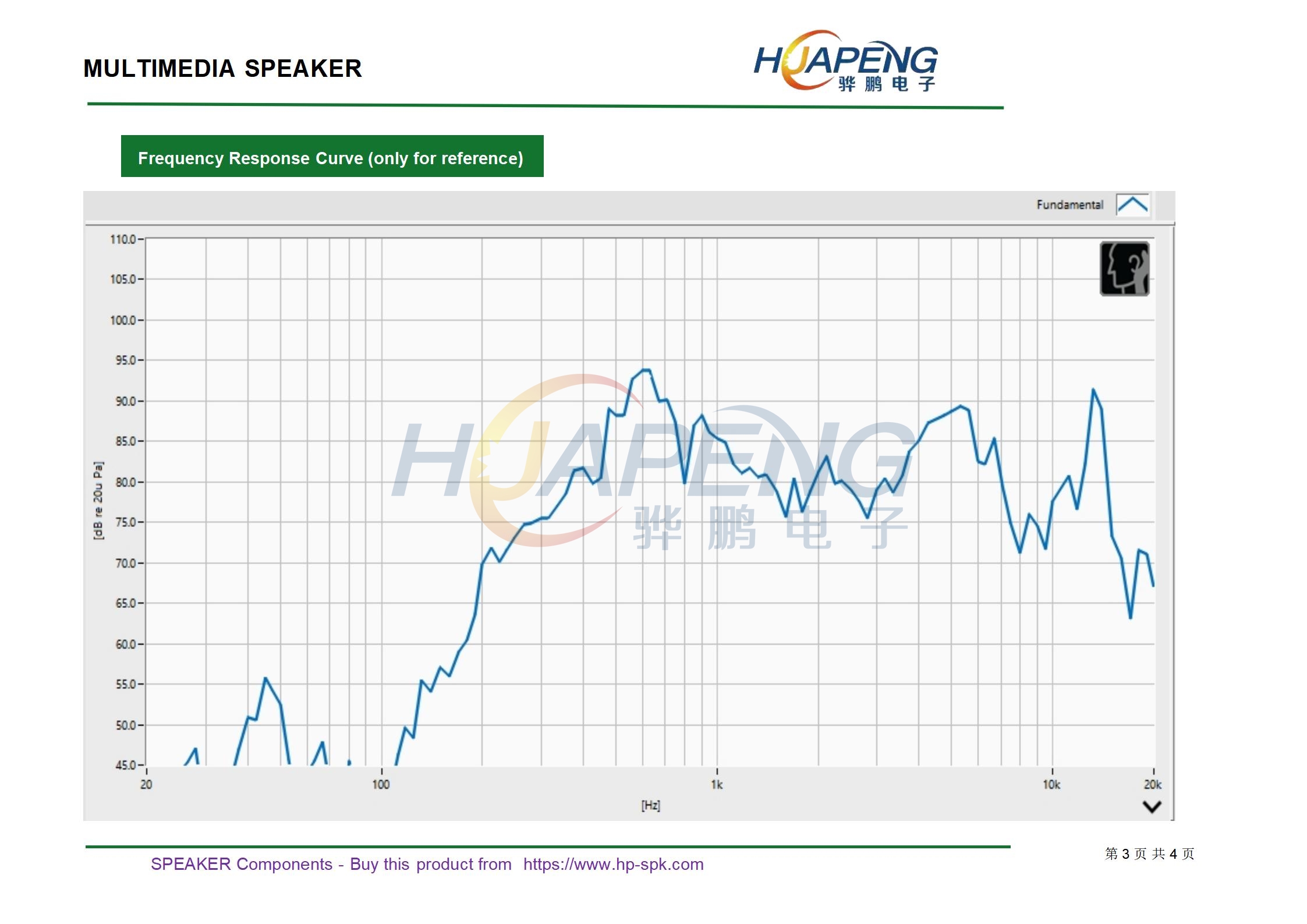

• Frequency Range Fo~10KHz
• Rated input power 2 W
• Maximum input power 3 W
• Buzz & Rattle must be normal (at sine wave 2.8 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
