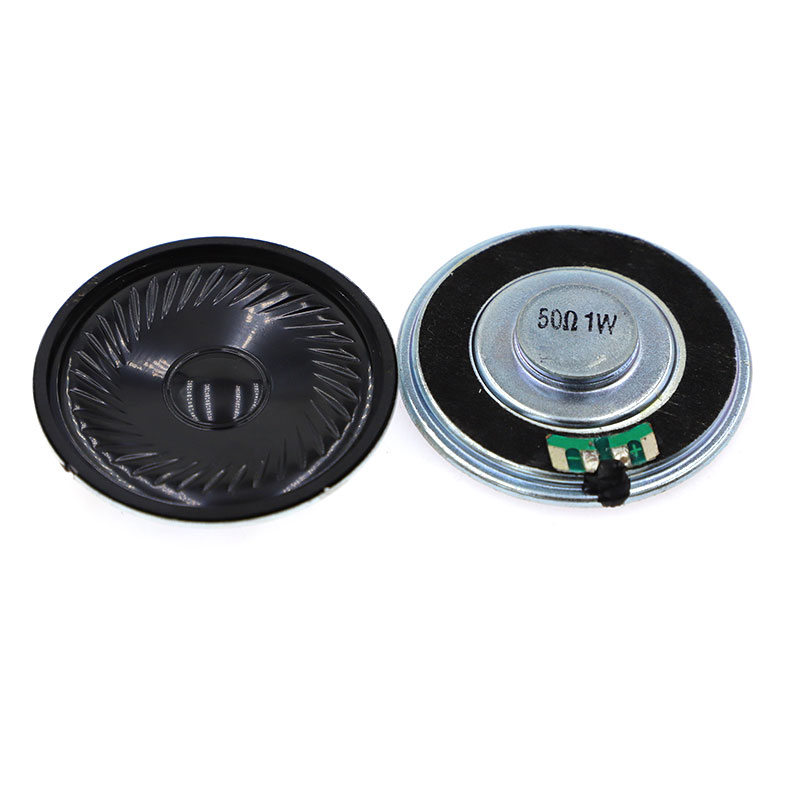

铁壳内磁喇叭型号：HP5080500100-01A规格：φ50mmH8mm50Ω1W铁壳内磁花膜喇叭

• Size： D50mm H 8 mm
• Impedance： 50 ±20% Ω
• SPL(1W 1m sine wave) 92 ±3dB(at 800,1000.,1200,1500Hz )
• Resonance frequency 380 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 1 W
• Maximum input power 1.2 W
• Buzz & Rattle must be normal (at sine wave 7.0 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
