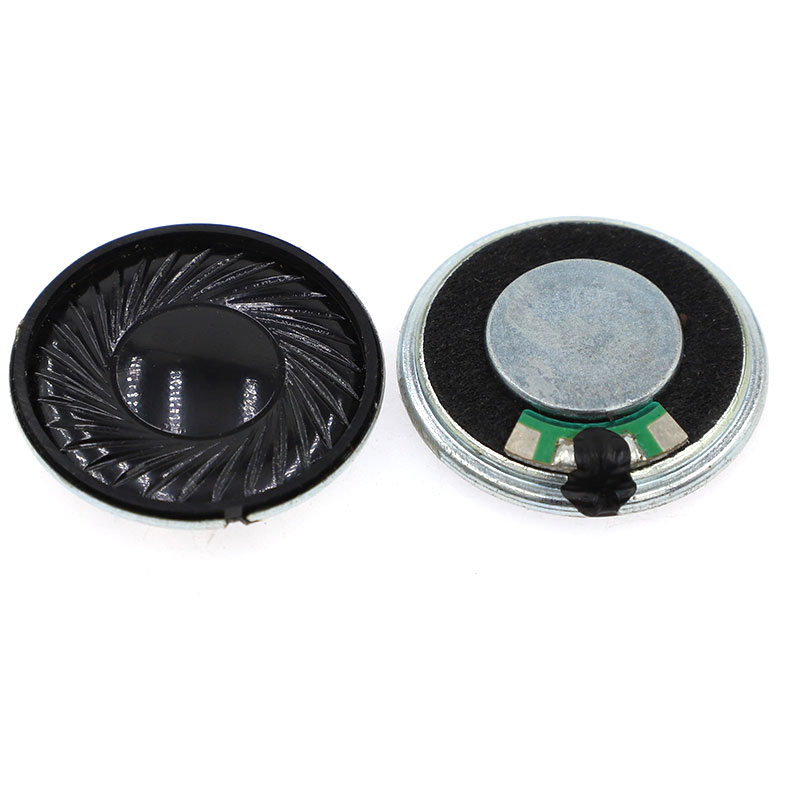

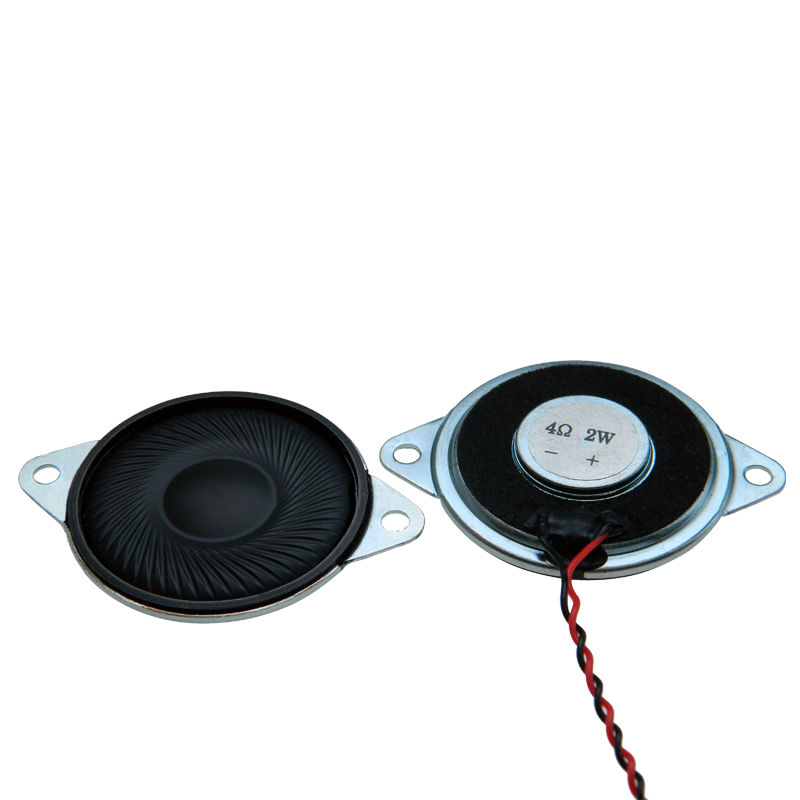

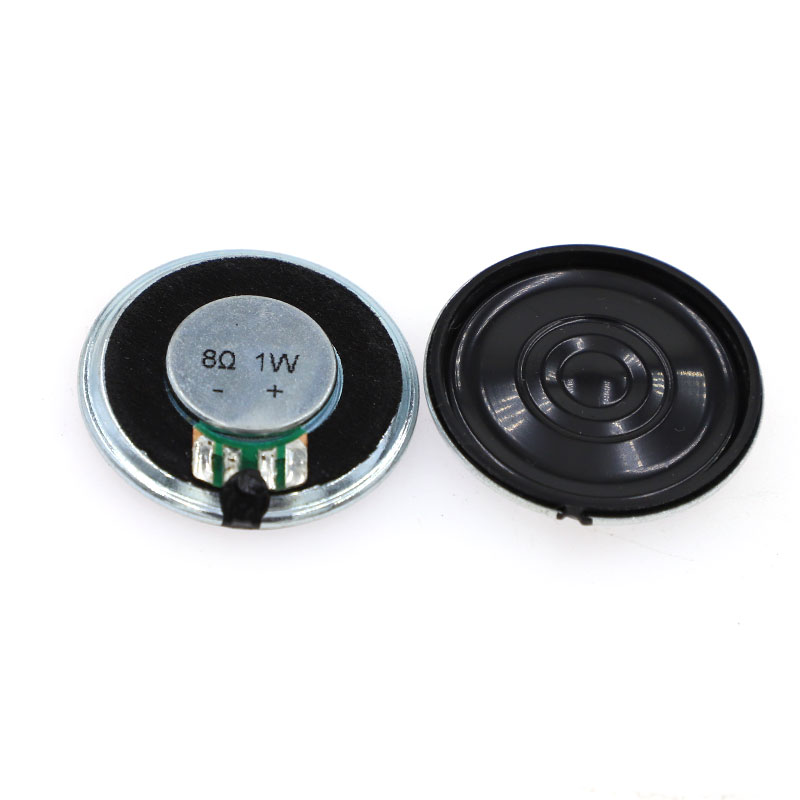

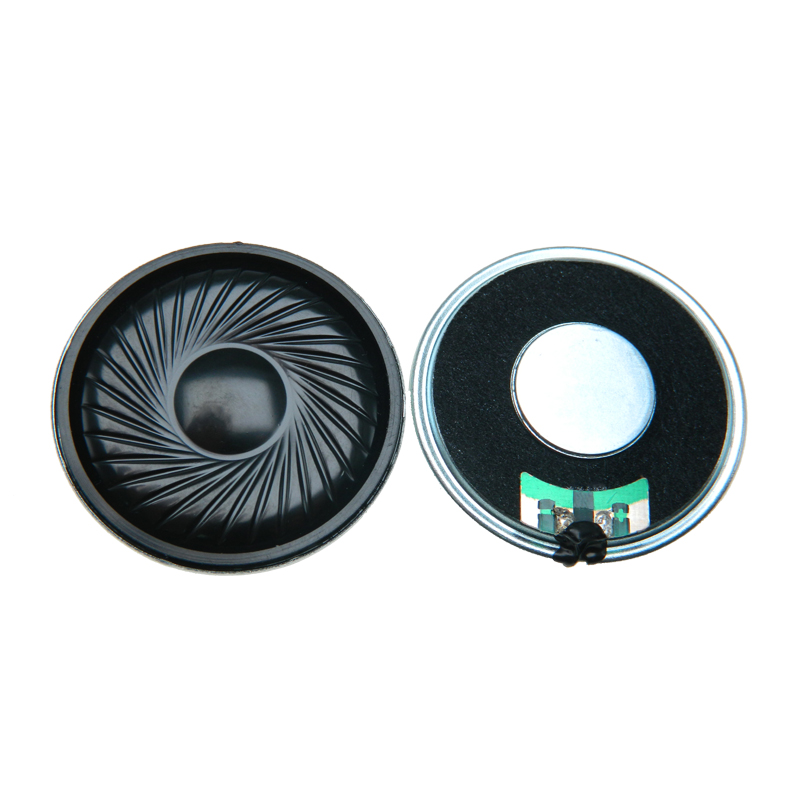

铁壳内磁喇叭型号：HP365308100-01A规格：φ40mmH5.5mm8Ω2W铁壳内磁花膜双耳喇叭

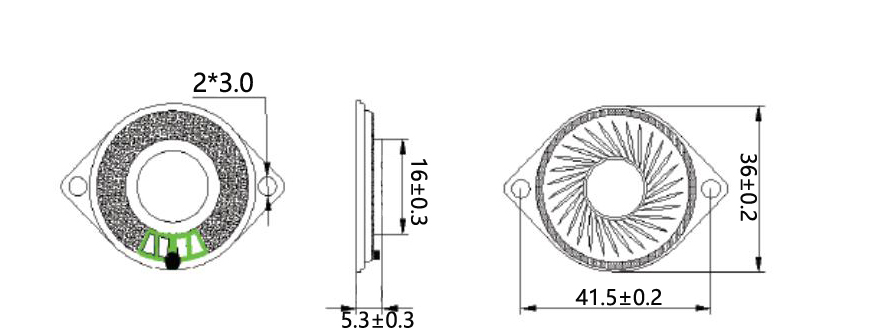

• Size： 36mm H 5.3 mm
• Impedance： 8 ±20% Ω
• SPL(1W 1m sine wave) 86 ±3dB(at 800,1000.,1200,1500Hz )
• Resonance frequency 440 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 1.5 W
• Maximum input power 2.0 W
• Buzz & Rattle must be normal (at sine wave 3.46 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
