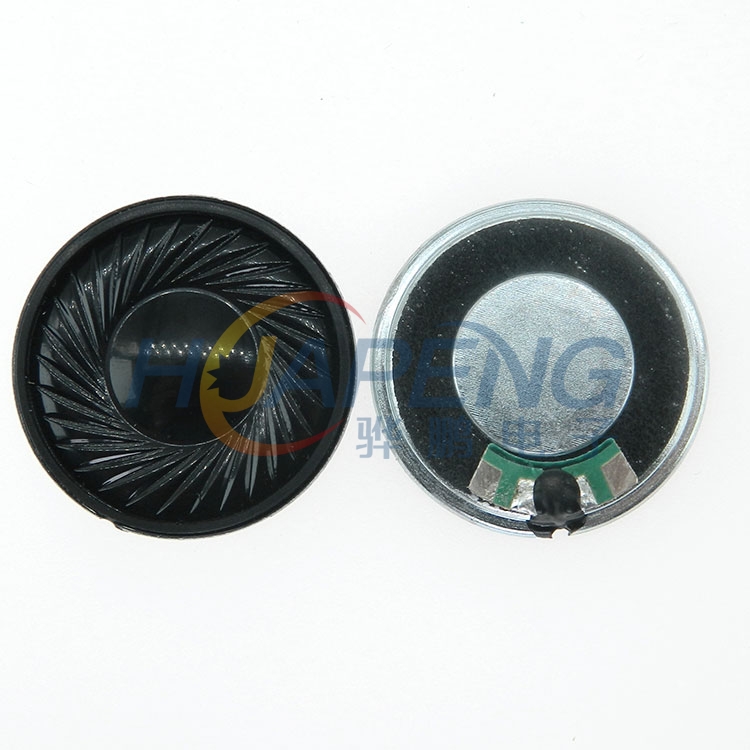

铁壳内磁喇叭型号：HP305508100-01A-规格：φ30mm8Ω1W内磁喇叭

• Size： D30* H 5.0 mm
• Impedance： 8 ±20% Ω
• SPL(1W 1m sine wave) 90 ±3dB(at 800,1000.,1200,1500Hz )
• Resonance frequency 560 ±20% Hz
• Frequency Range Fo~10KHz
• Rated input power 1 .0 W
• Maximum input power 1.5 W
• Buzz & Rattle must be normal (at sine wave 2.8 V)
• THD MAX 5% (RATED POWER INPUT at1000HZ）
• Operating temperature -20~+60℃
• Storage temperature -20~+60℃
• Environmental Protection Regulation RoHS
